The AROWGuard – Driver Protection System was designed with the transit operator in mind and was created in response to the increase in driver attacks throughout North America.

Working in conjunction with the transit authority, bus manufacturer and transit union AROW Global works to develop a custom-engineered driver barrier specific to their needs. The safety shield can be installed on existing mass transit bus fleets or can be built to satisfy the specific OEM requirement on new mass transit bus builds.

Standard Design Features:

  • Bottom edge of glass is completely protected
  • Swinging the door past the standee line is limited with a heavy duty impact and tear resistant strap
  • Door weighs approximately 75 lbs.
  • Approximately 5 in. of protrusion into the aisle way above the ADA area
  • Door swings as complete unit
  • Lower panel is constructed of welded aluminum sheet metal panels
  • Available on low floor and coach buses

Additional Features

Driver Zone

Approximately 37 in. of elbow room (street side wall to DPS glass)


Unobstructed view of curbside mirror for the 95th percentile of drivers (per SAE J941)


Clear view of the bottom of the entrance door


Minimal protrusion into the passenger aisle


Latch stanchion takes up minimal space in the driver entrance/exit area

Hinge Assembly

Matte black finish


1 – 3/4 in. diameter pivoting tubular hinge


Design is free of pinch points


Uses UHMW bearings to prevent rattling and reduce maintenance requirements


Mounts directly to bus chassis

ADA Compliance
(Box Test)

Exceeds requirements for passing a 30 in. x 30 in. x 48 in. long box through entry
door and aisle way


Box path is evaluated in CAD for each product configuration

Latching Mechanism

Heavy duty/low maintenance automotive grade rotary slam latch


Snag free latch stanchion and striker mount directly to bus chassis


Self adjusting, low maintenance, vibration dampening mechanism


Easily serviceable components


Easy to actuate latch release knob

Additional Features

Tempered, laminated, anti-glare and anti-spall glass options


Proprietary Rapid Replacement glazing system permits glass replacement in three minutes or less


Tubular structural mounting system complements existing stanchion infrastructure and vehicle interior


Robust welded aluminum lower panel provides lightweight yet durable and long-lasting protection


Components can be custom painted or polished to complement vehicle interior

Product Configurations

Slide Stow

The AROWGuard Slide System is a fixed door that incorporates a sliding two piece glass system. This design allows the driver to adjust the sliding glass into multiple positions, similar to how they would adjust the driver’s window.

  • Easy to slide closed, offering the driver quick protection in the event of an emergency.
  • Utilizes the time-tested and robust AROW Global rocker latch.
  • Low-friction track controls slide forces and provides long-lasting, reliable operation.
  • Designed to attach securely to the vehicle chassis or carlines.
  • In compliance with AS-2 regulations and ADA requirements.
  • Pyrolytic anti-glare coating compatible, which reduces interior and exterior light reflectance to less than 2%.
  • Glass geometry allows for unobstructed view of surroundings, including rearward facing and curbside mirrors.
  • Tailored to work around existing bus equipment such as fare boxes, cameras, and stanchions.
  • Glazing shall permit unobstructed view of the curb-side mirrors and to the bottom of the entrance door for operators included in the 95th percentile of the operator population in accordance with SAE J941.

  • Glazing material shall be a minimum of 5/16” (8mm) thickness and be of a tempered / laminated construction with pyrolytic application of anti-glare coating on surfaces #1 and #4.

  • Glazing material shall comply with American National Institute, Standard ANSI/SAE Z26.1-1996 S5.2, FMVSS 571.205 49CFR, and SAE J673 #1 edge standards for automotive glazing.

  • Glazing material shall be properly marked indicating approved for automotive use in accordance with ANSI/SAE Z26.1-1996 S7 and FMVSS 205 S6.2 standards.

  • All DPS glazing shall be easily serviceable and allow replacement in less than 5 minutes by a qualified technician.

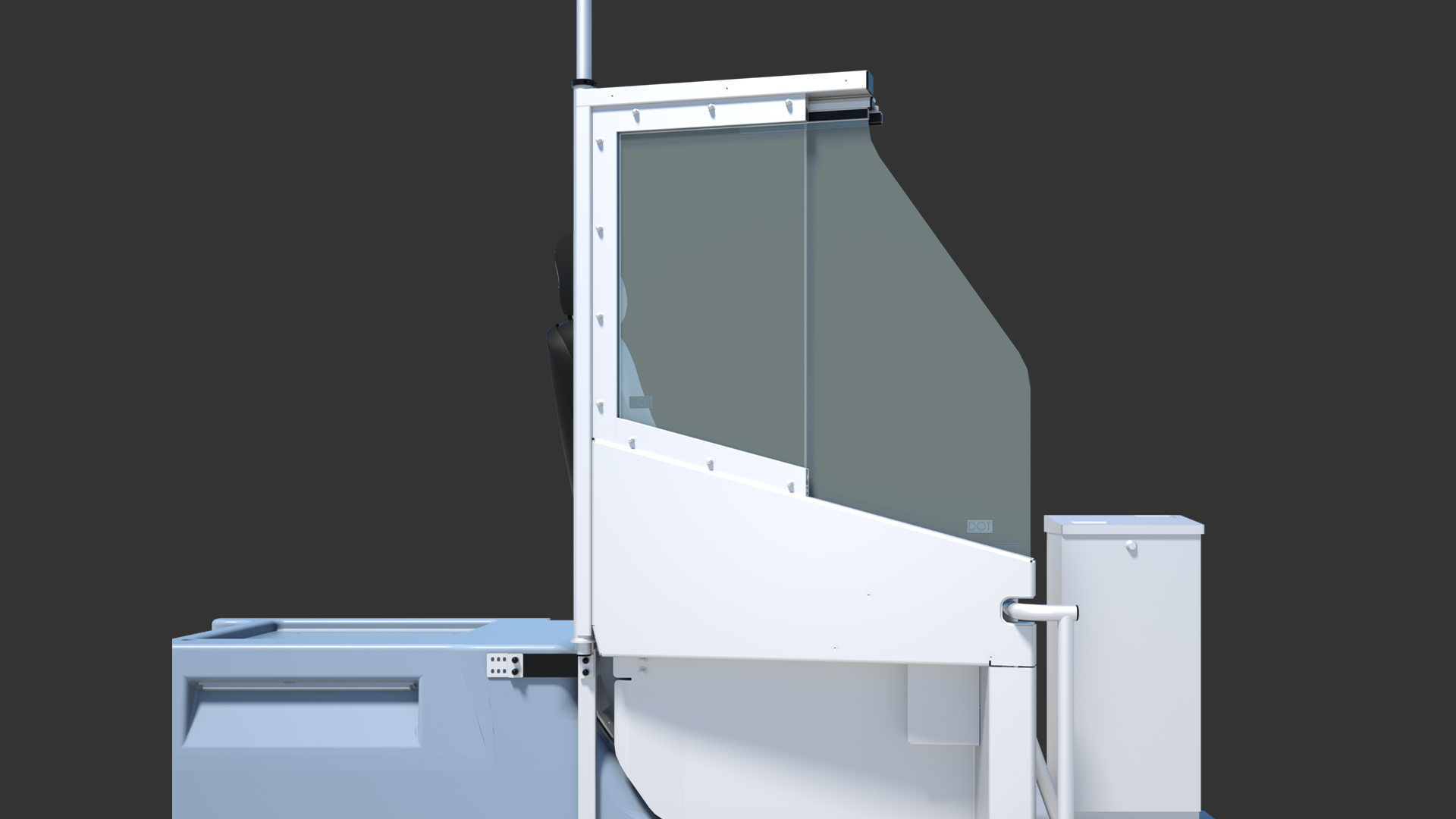

  • Standard Glass
  • D Shape Extended Glass

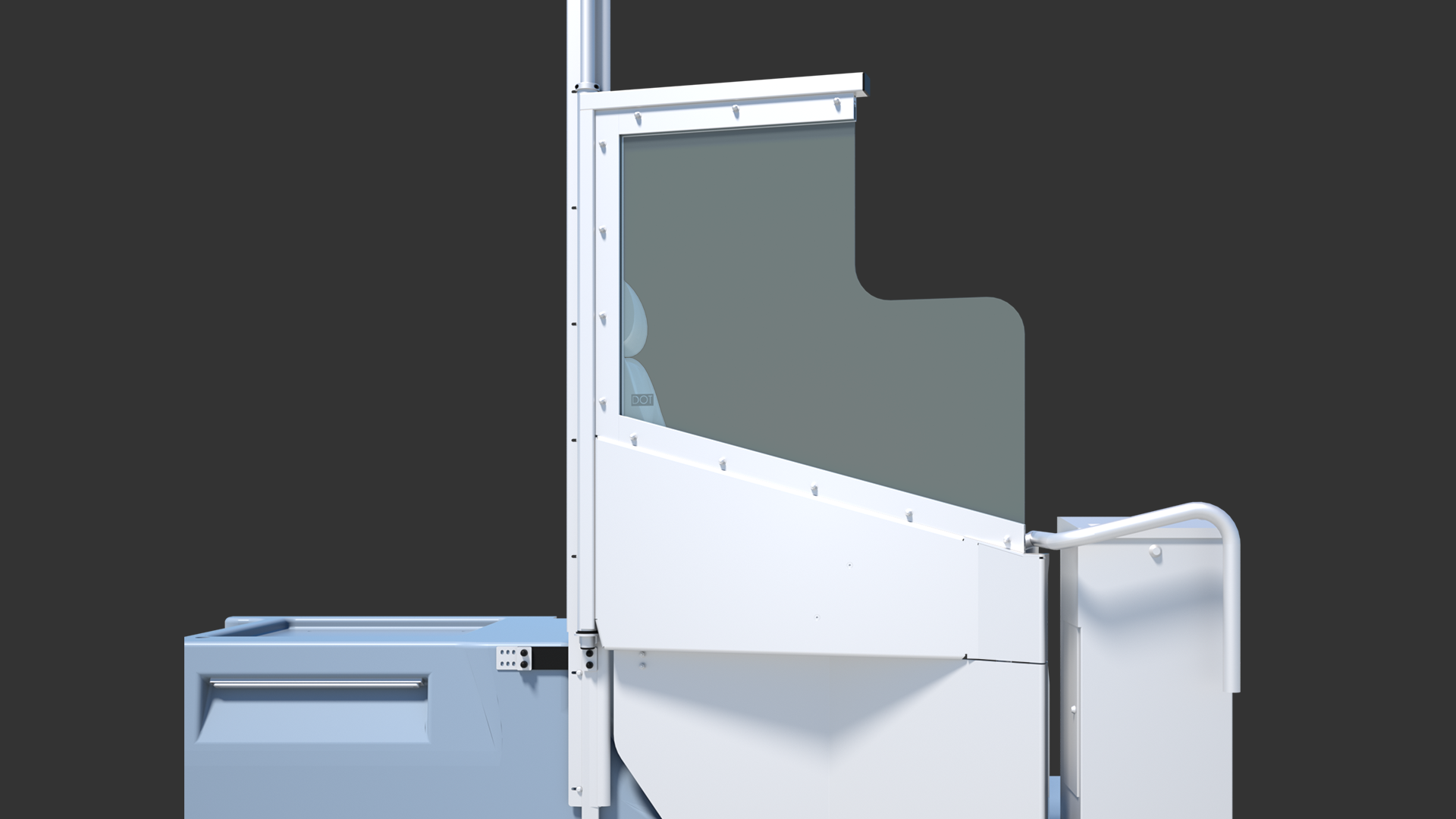

  • P Shape Extended Glass
Comparison of the different glass configurations for the driver protection sliding barrier, standard glass, D-shape extended glass and P-shape extended glass

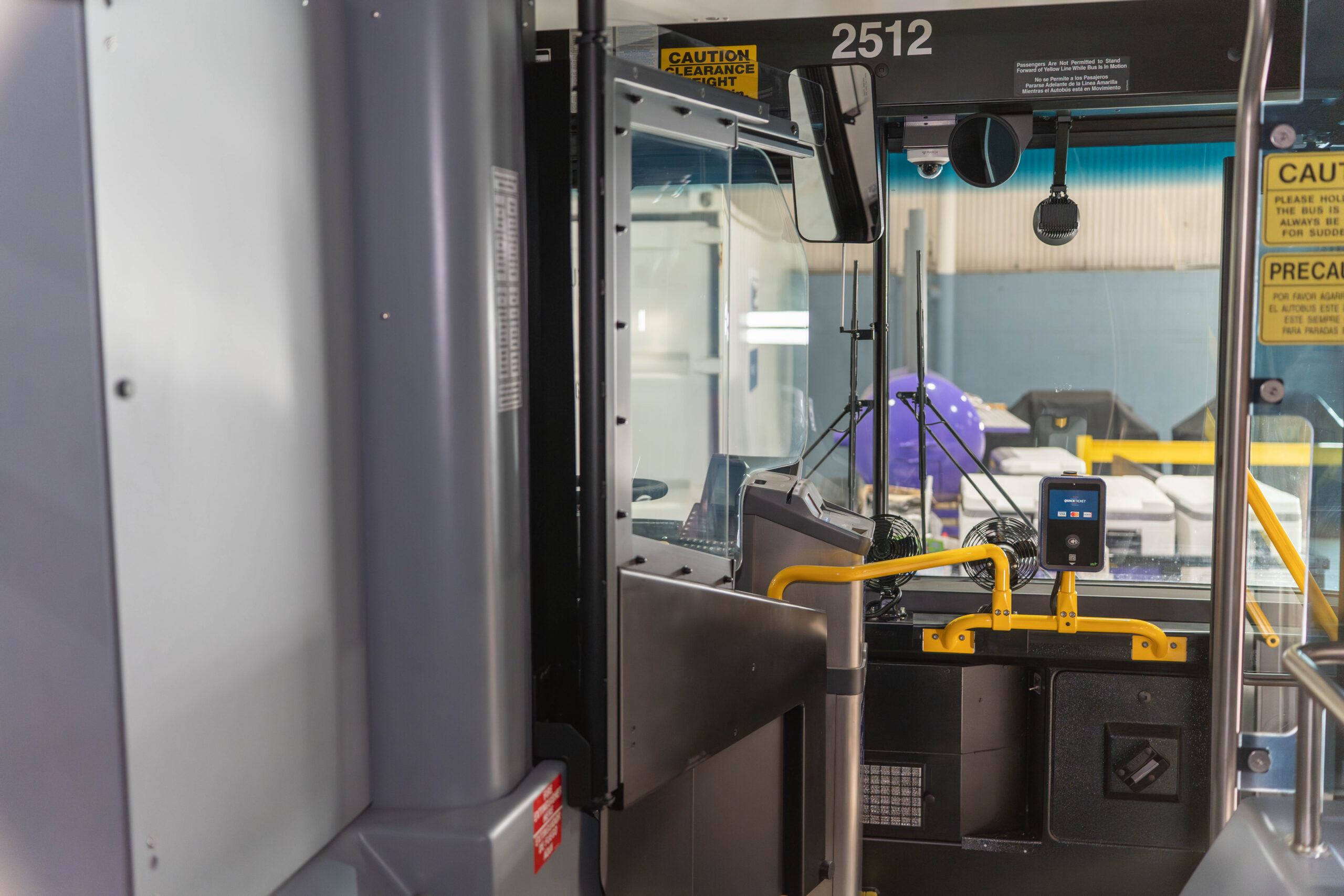

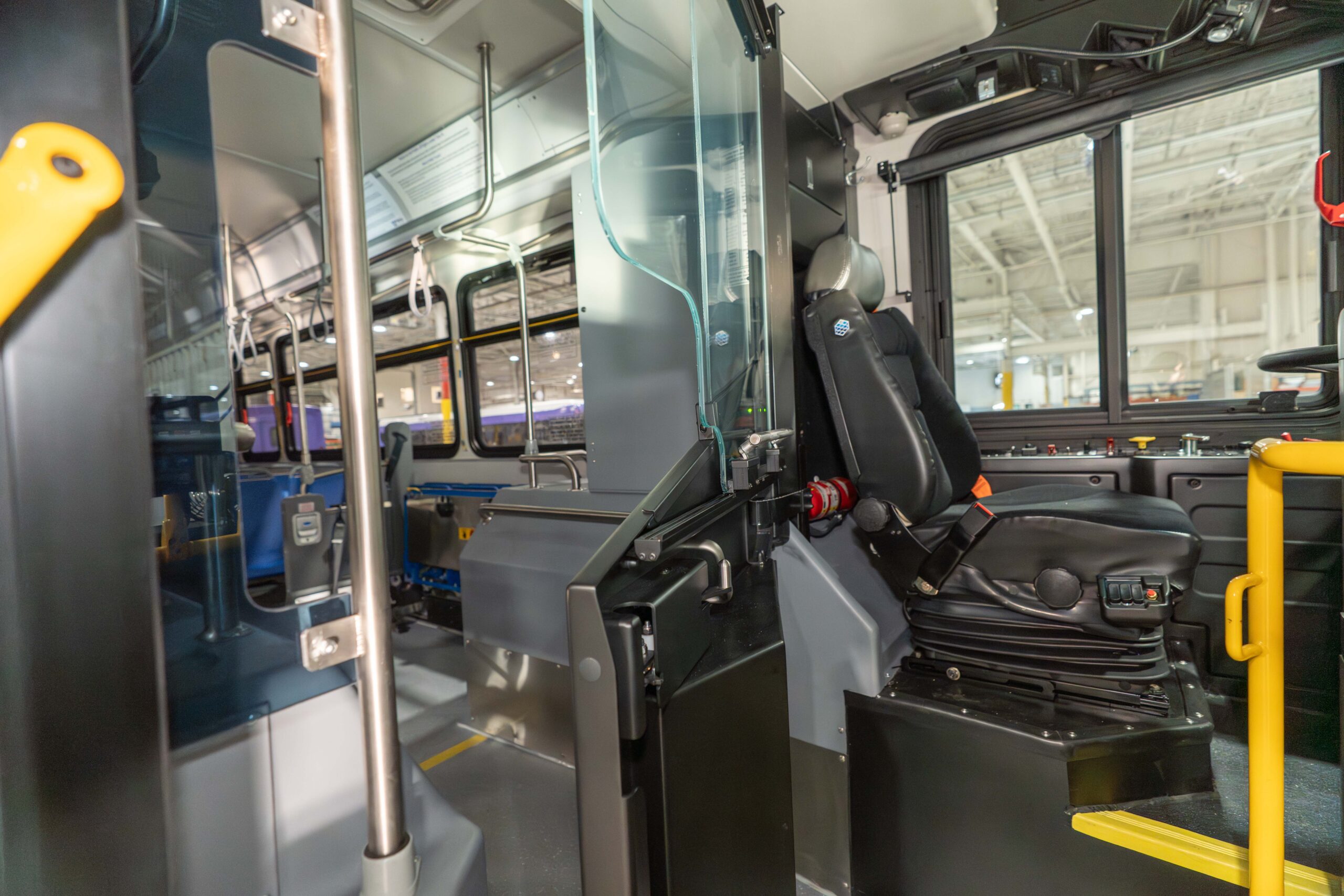

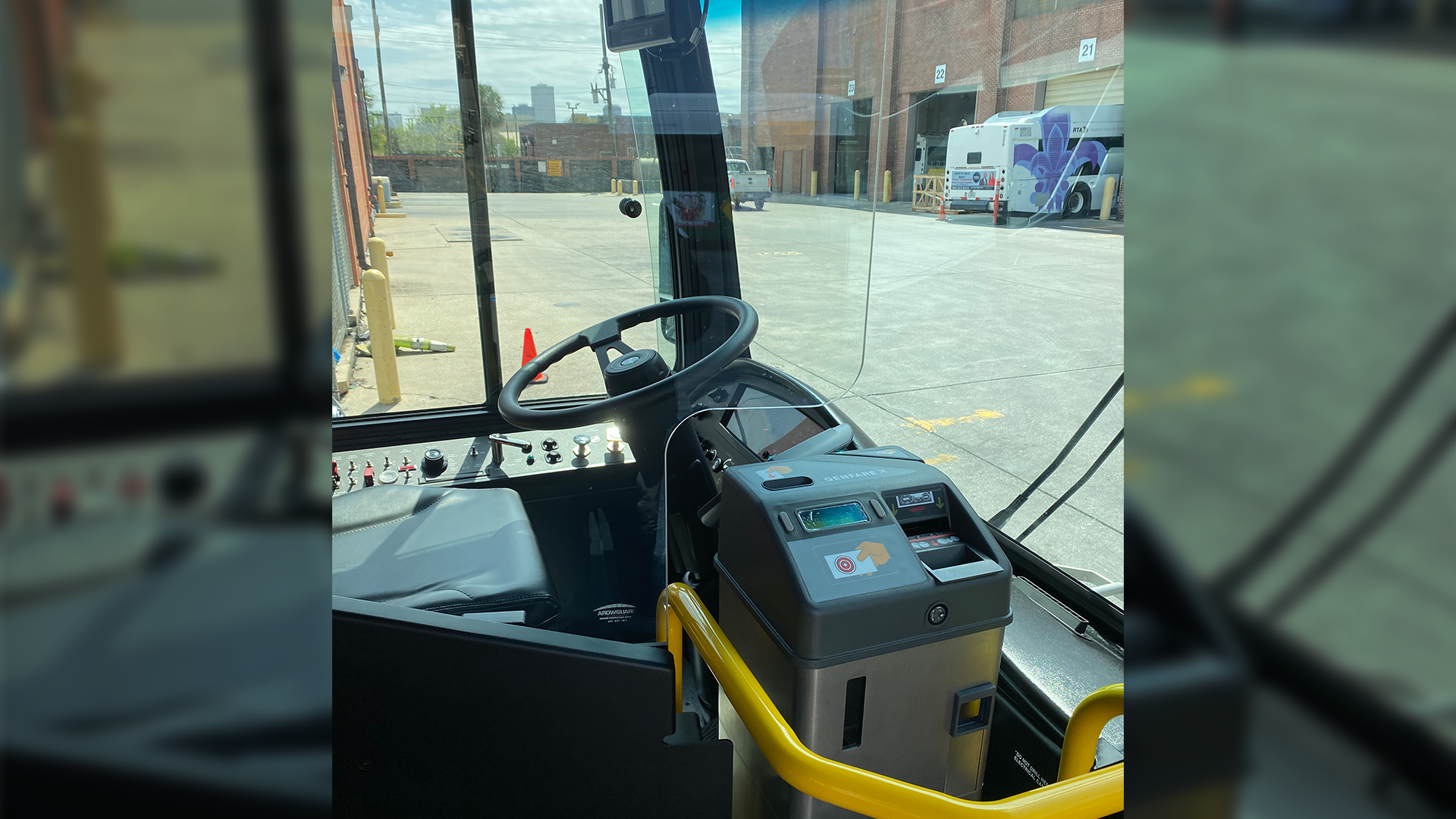

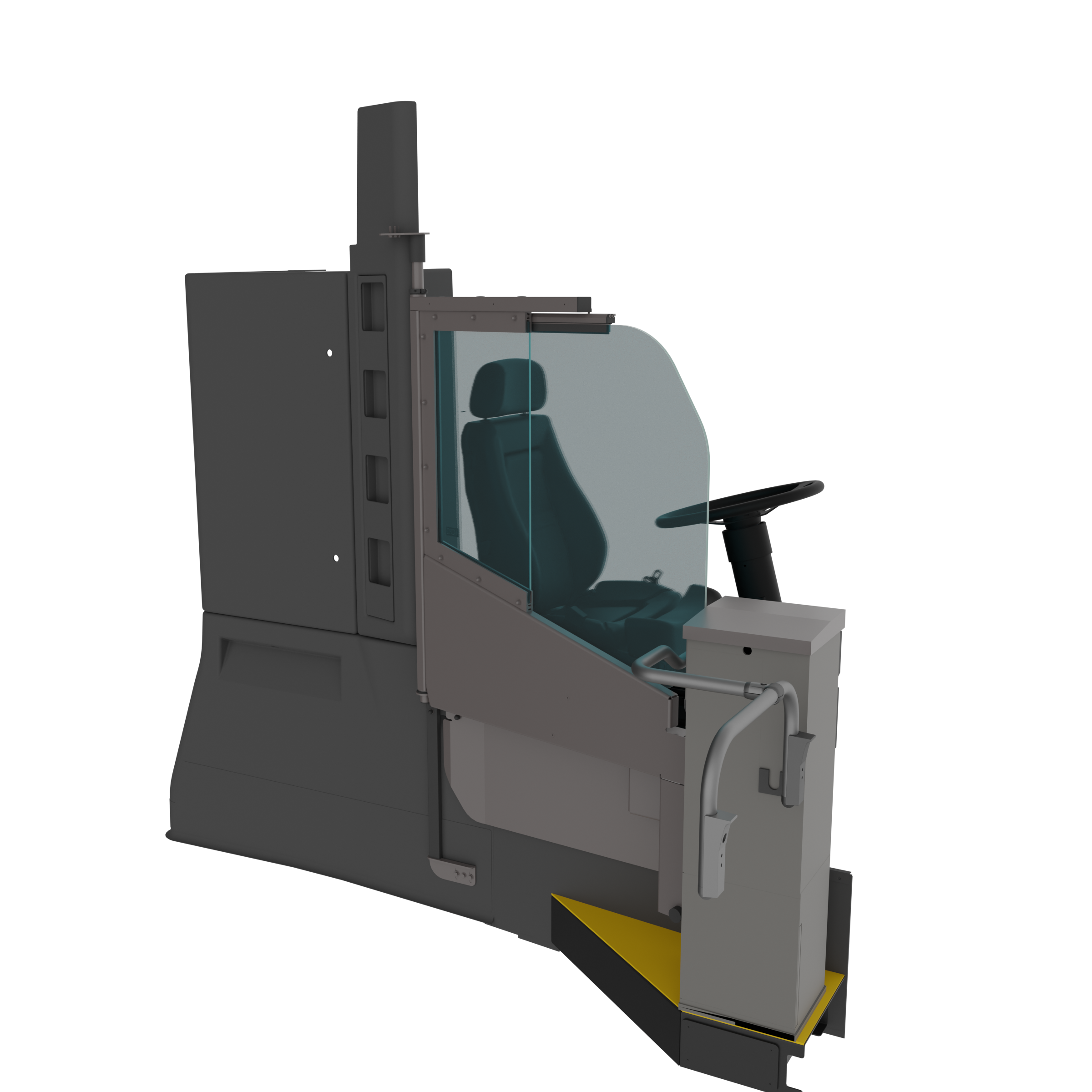

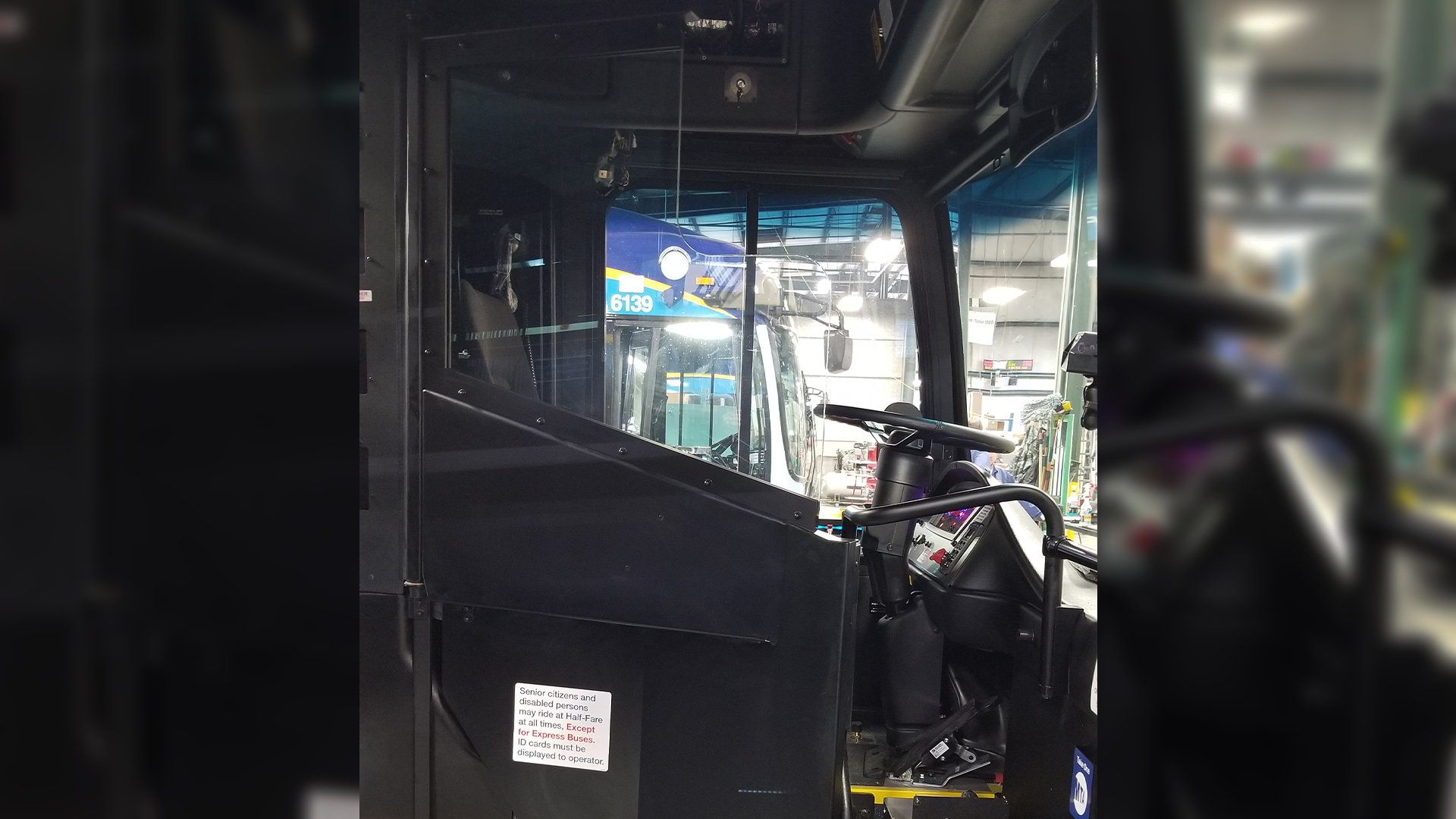

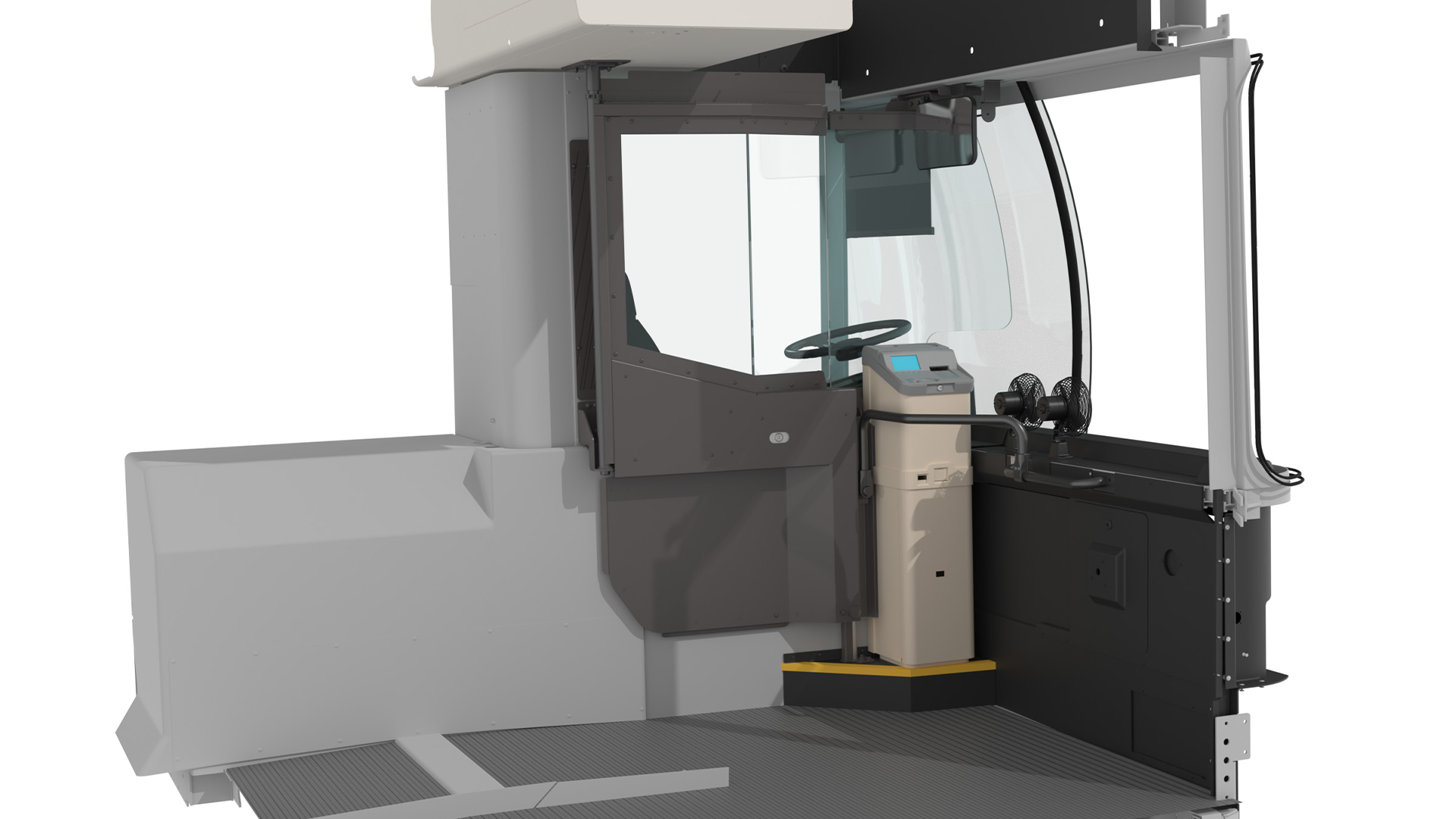

AROWGuard slide system driver protection barrier installed on a transit bus

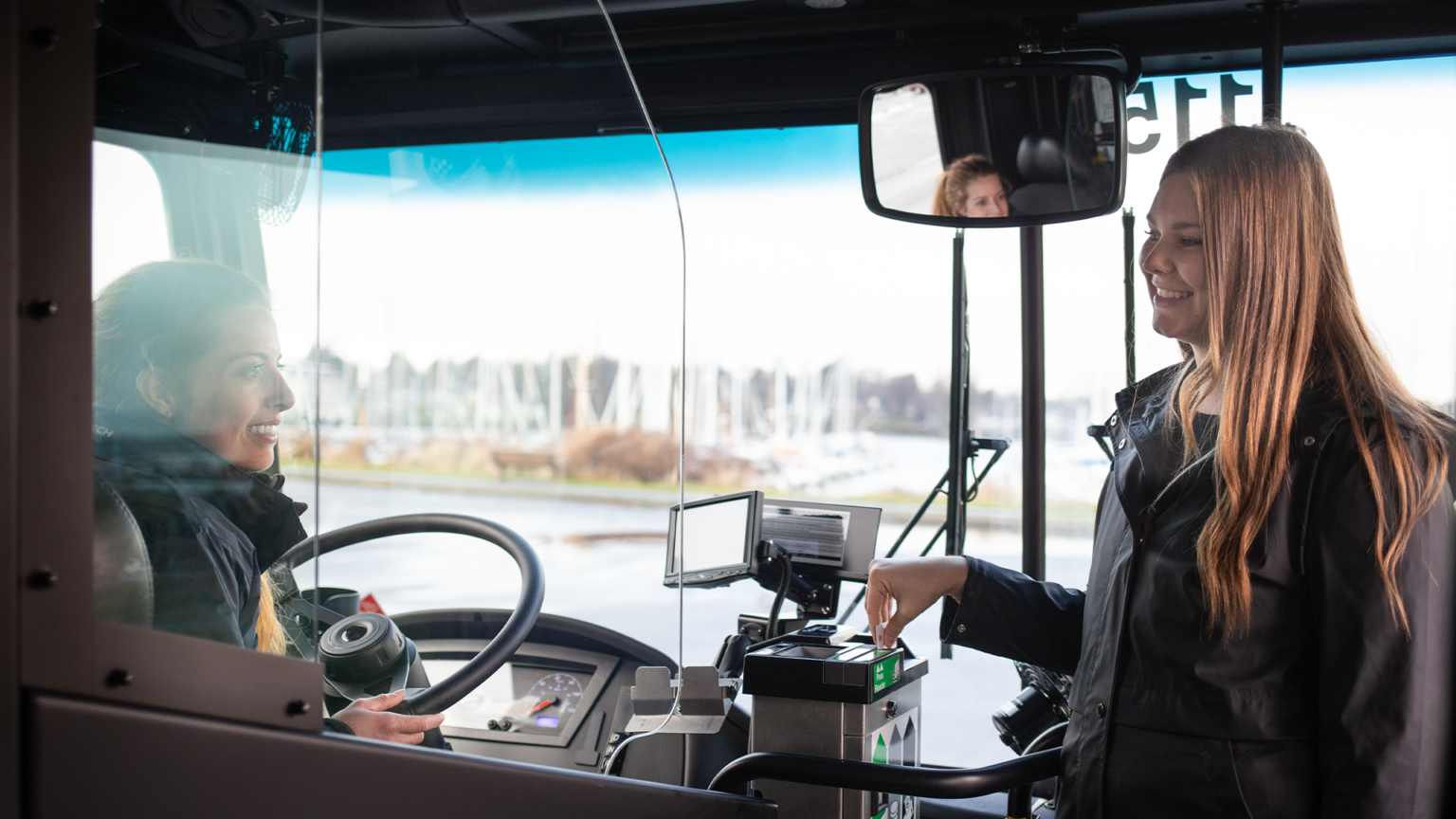

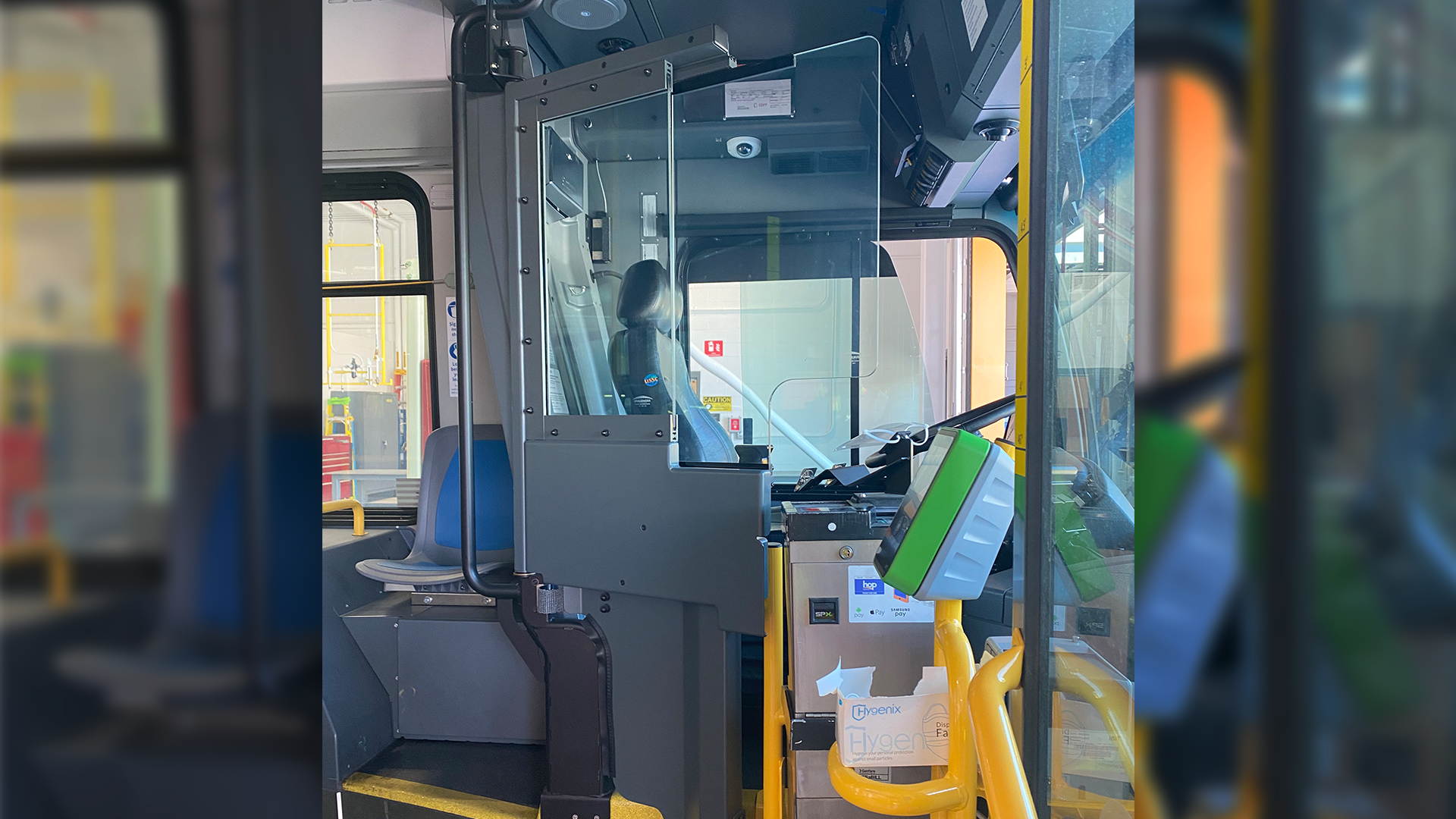

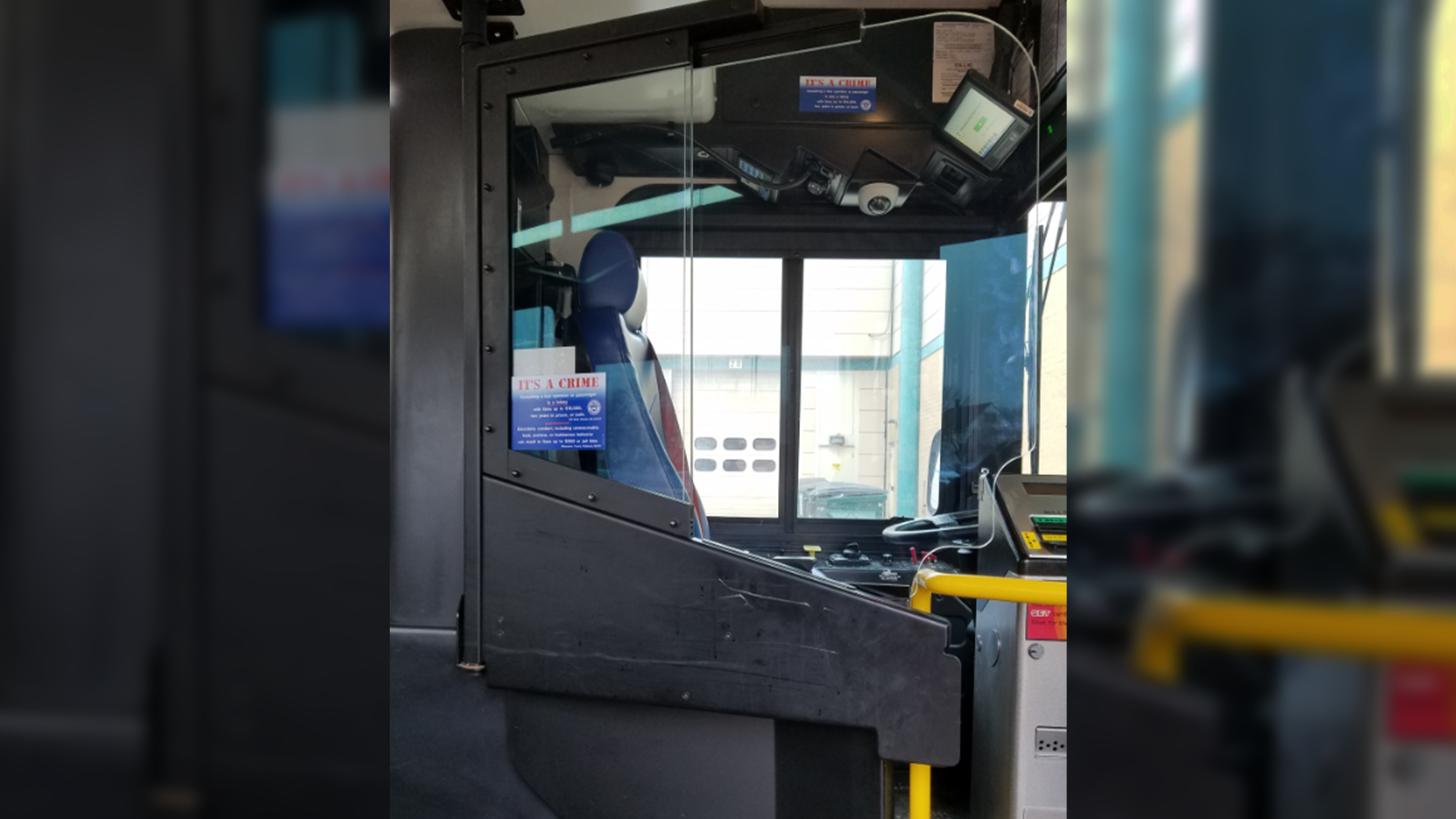

AROWGuard slide system driver protection barrier installed on a transit bus

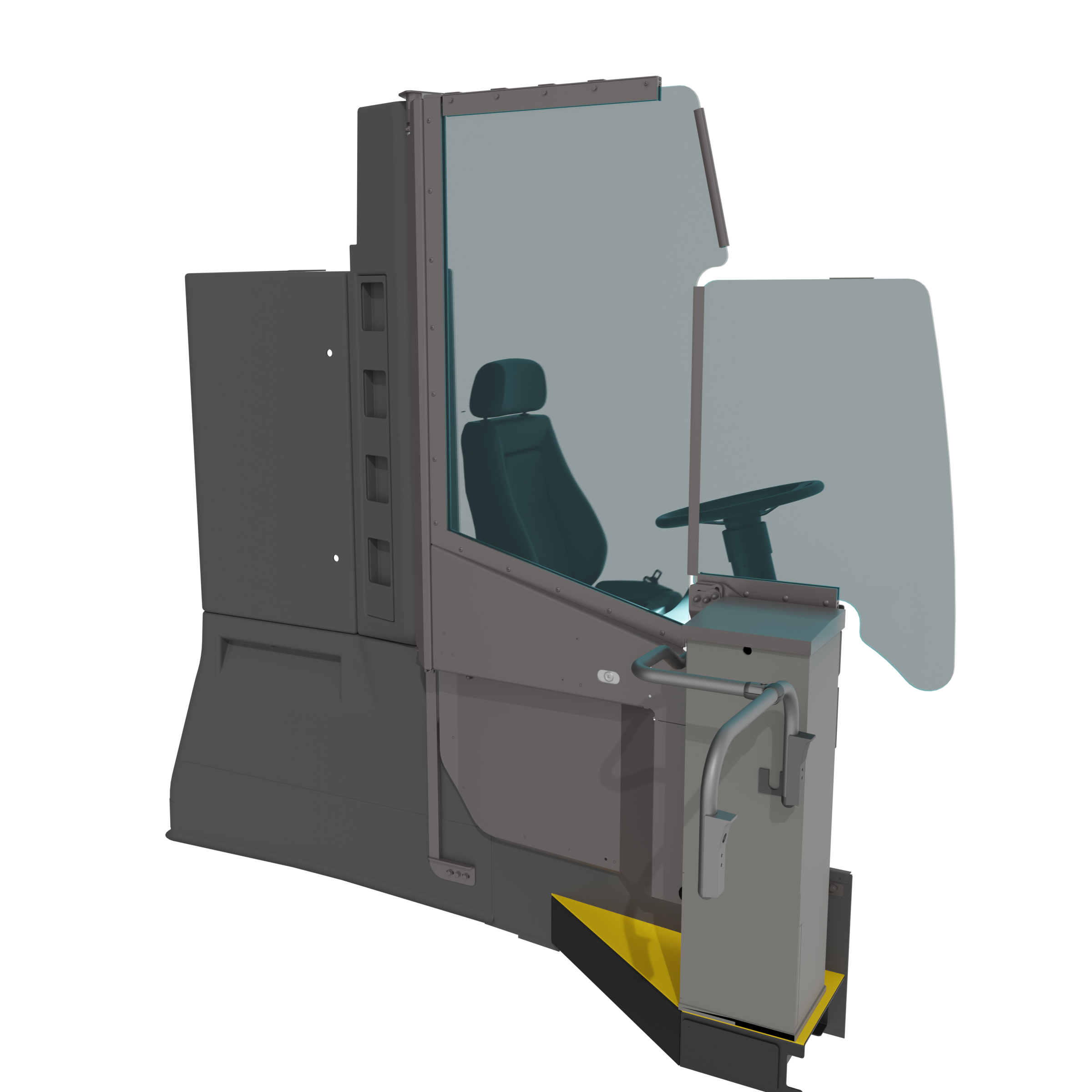

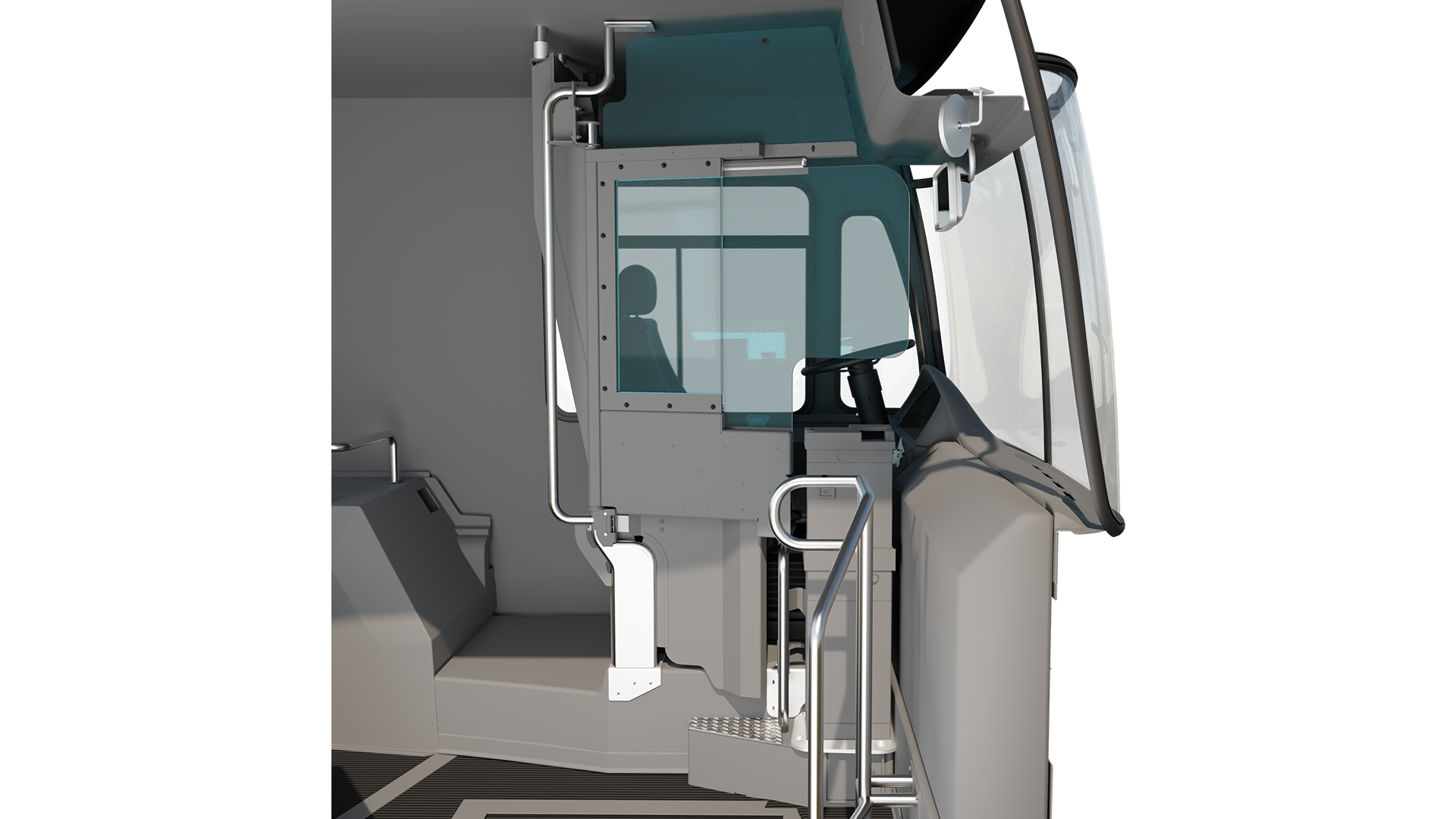

AROWGuard slide system driver protection barrier installed on a new flyer bus

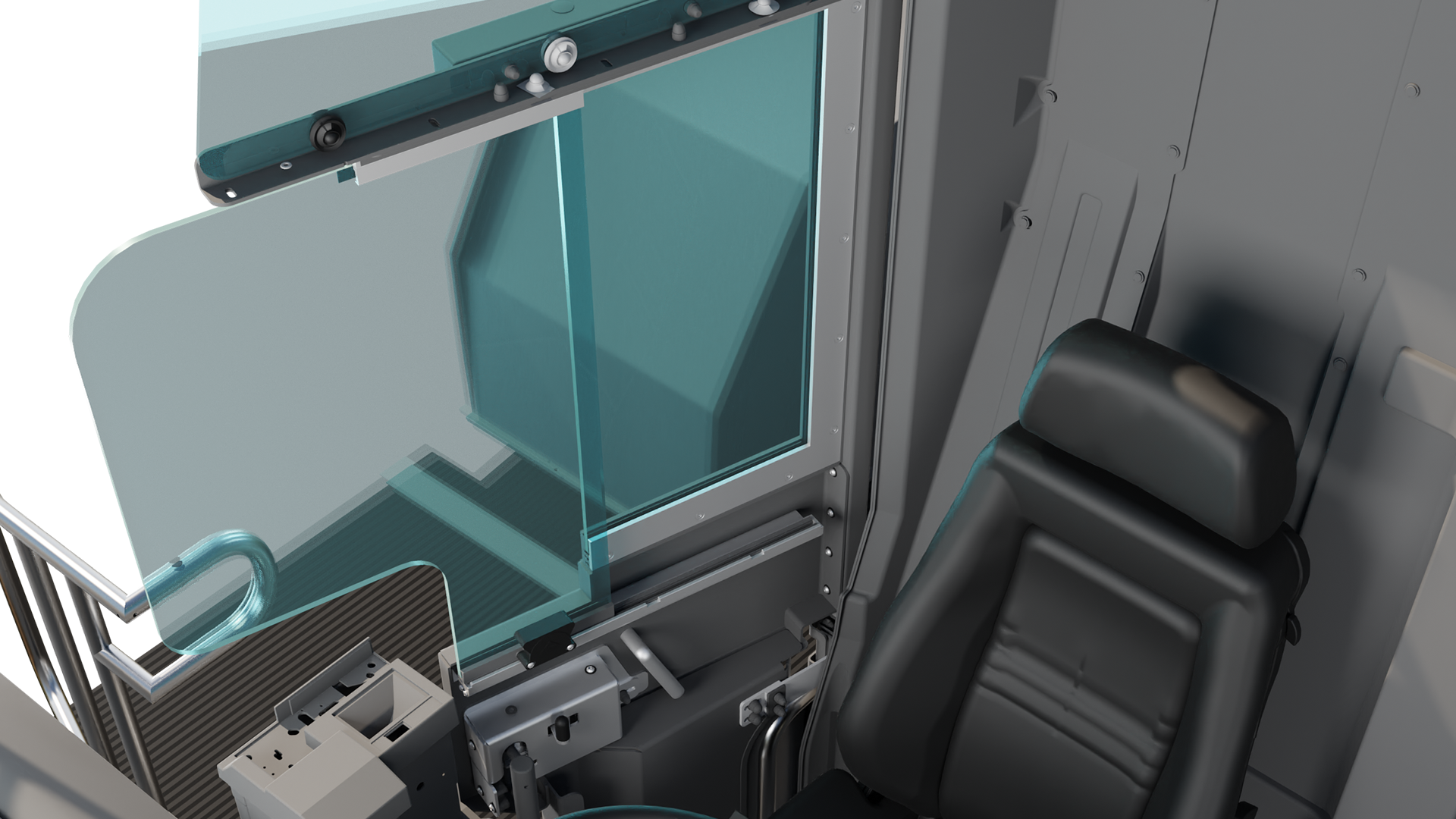

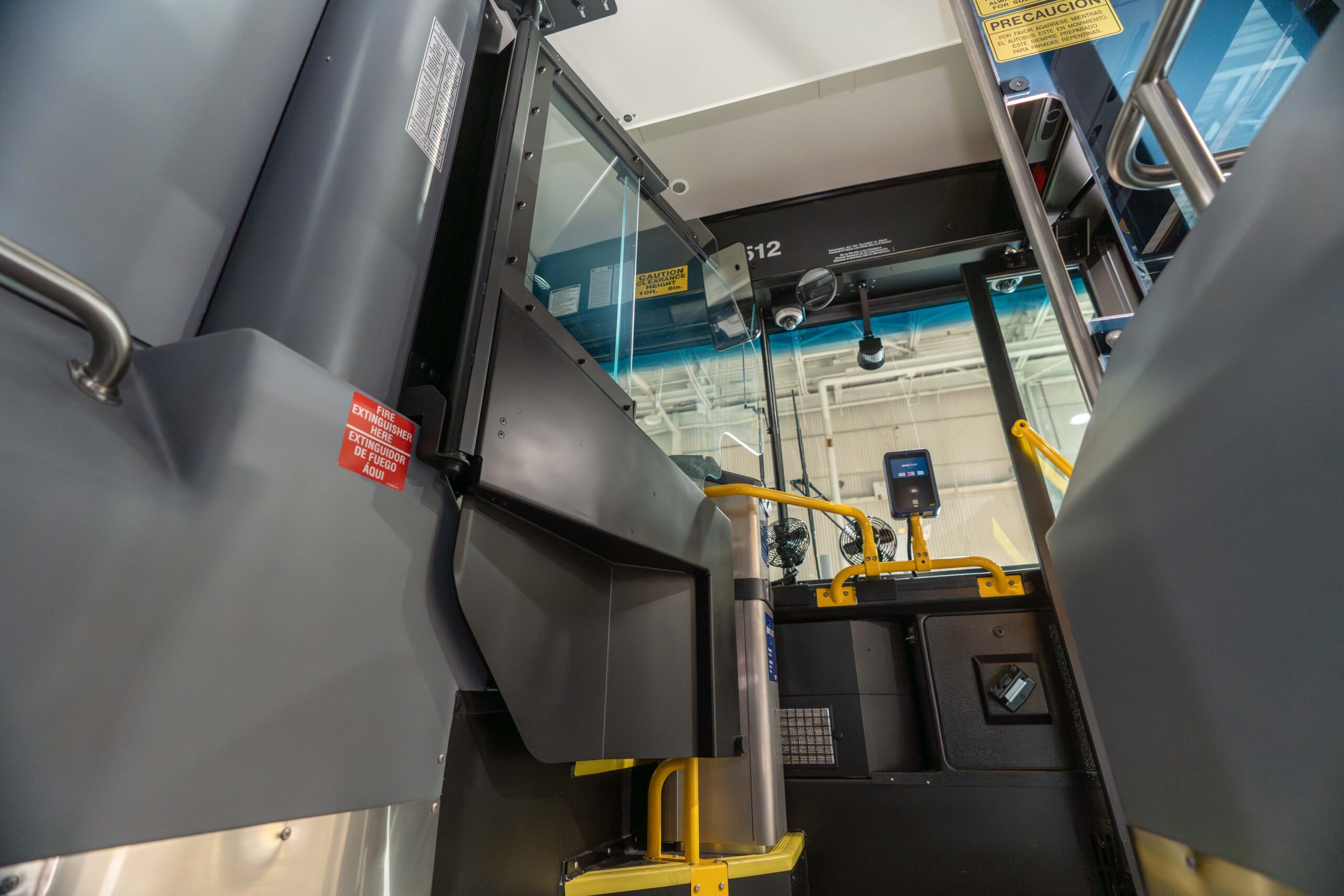

AROWGuard slide system driver protection barrier rocker latch close-up

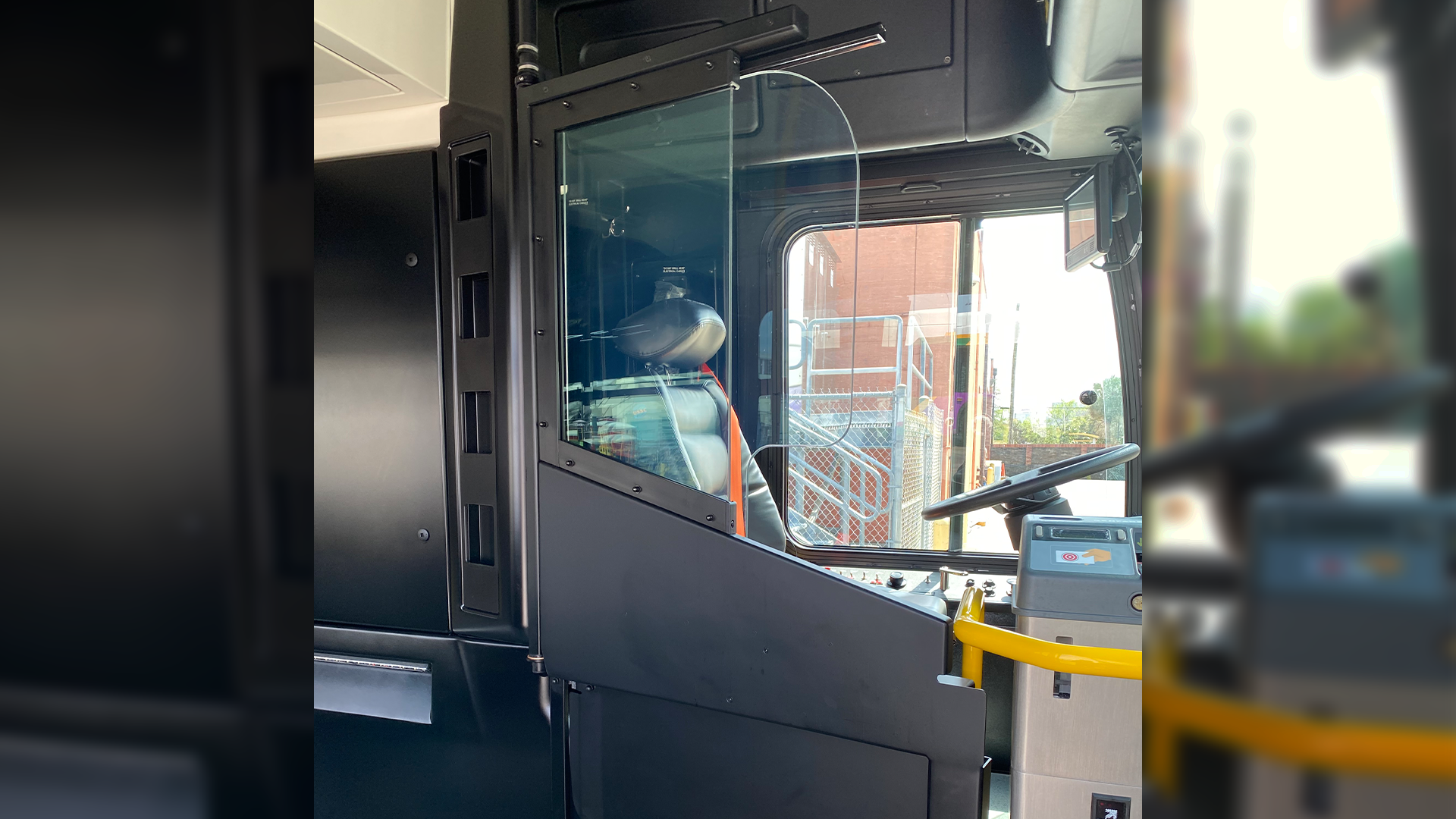

AROWGuard slide system driver protection barrier with standard glass installed on a transit bus

AROWGuard slide system driver protection barrier with standard glass installed on a coach bus

AROWGuard slide system driver protection barrier with standard glass installed on a coach bus

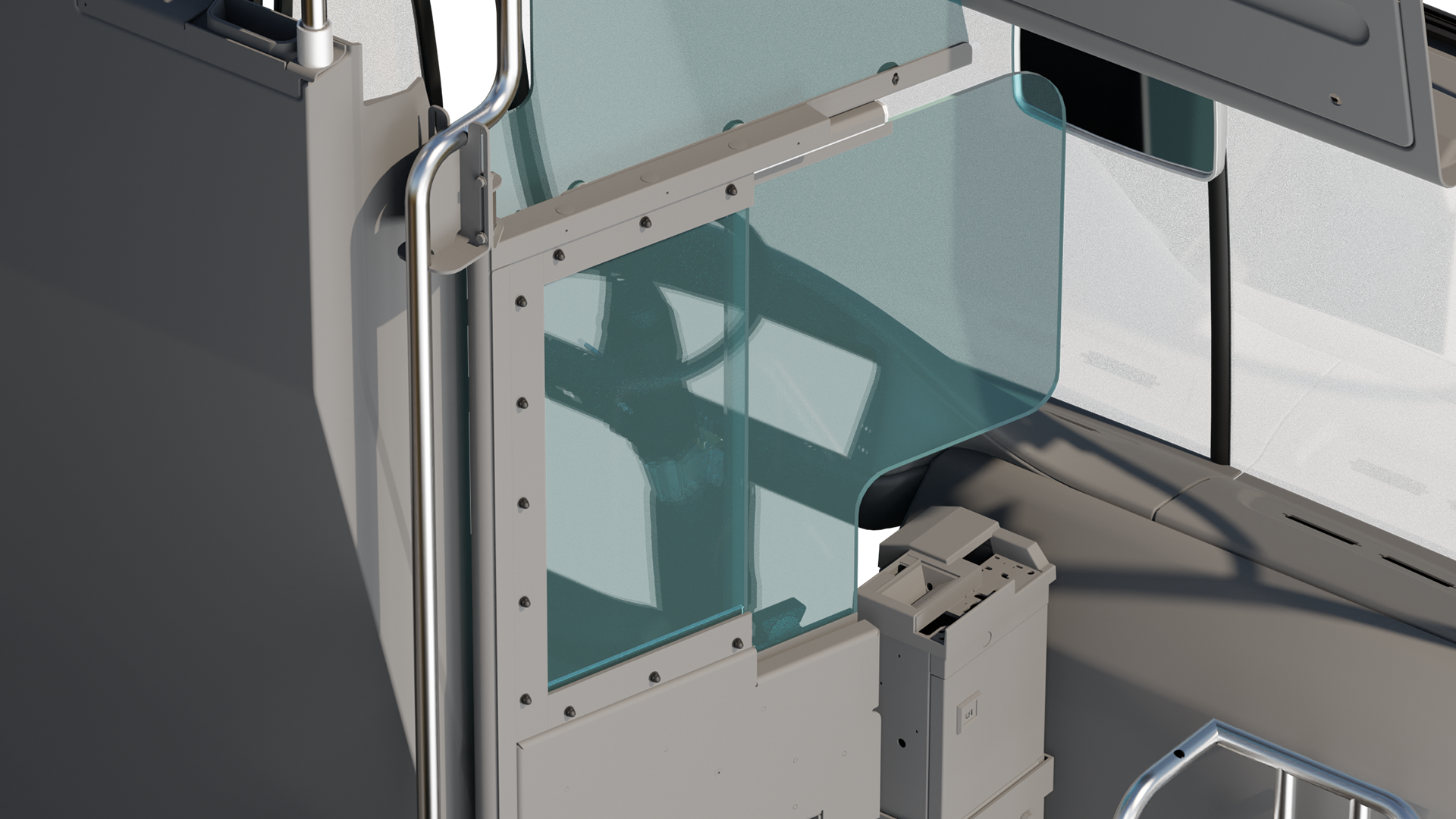

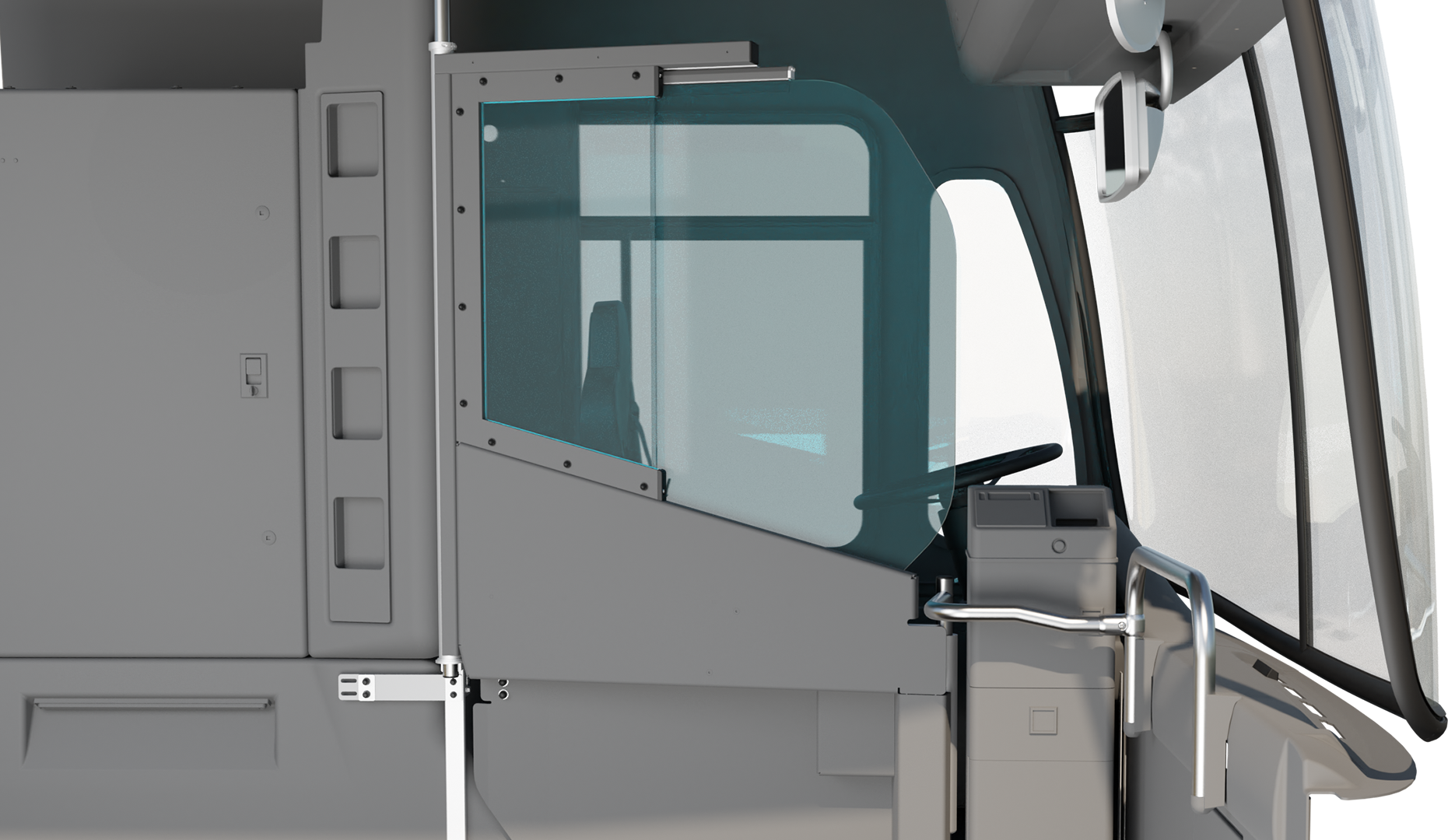

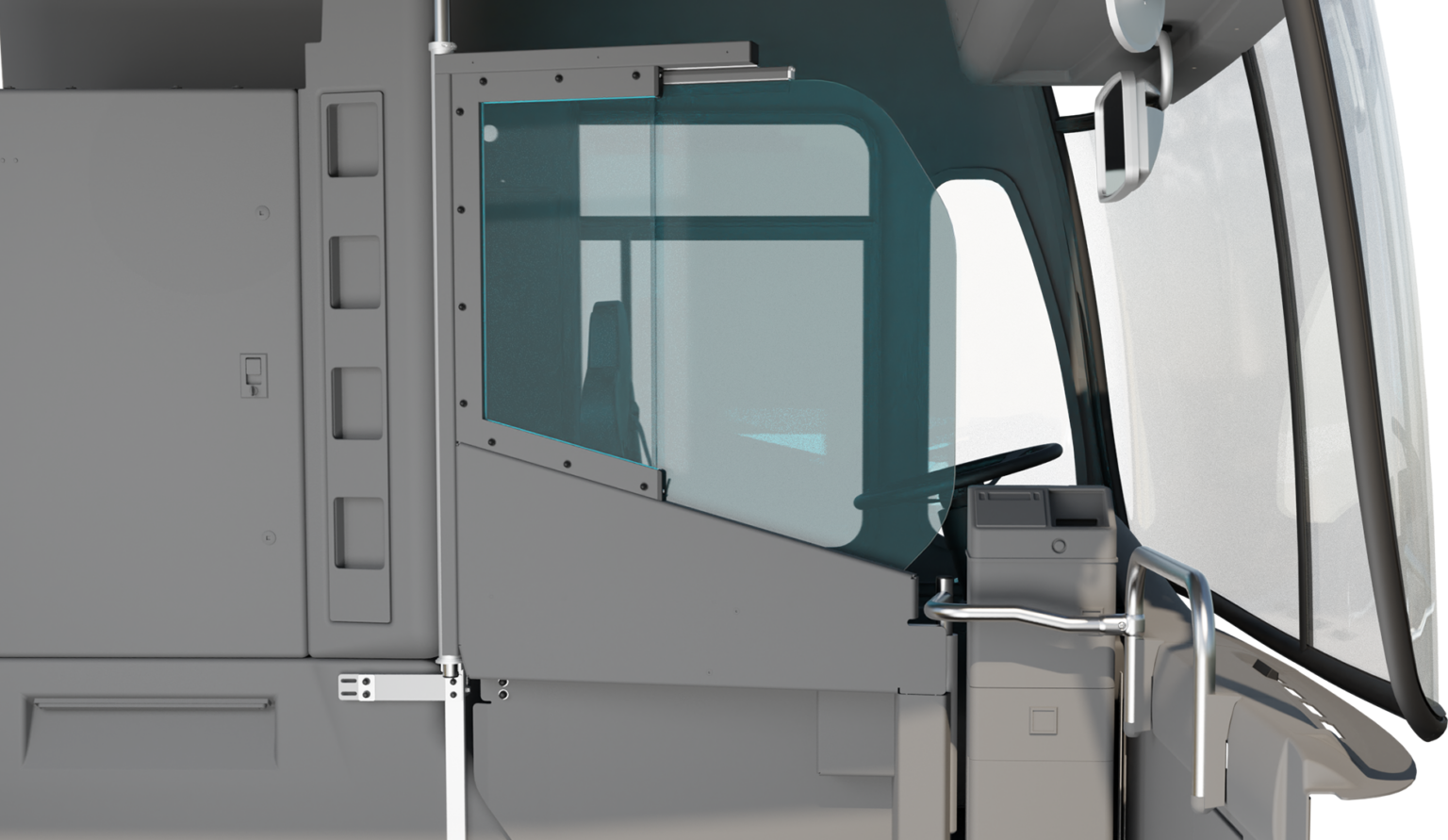

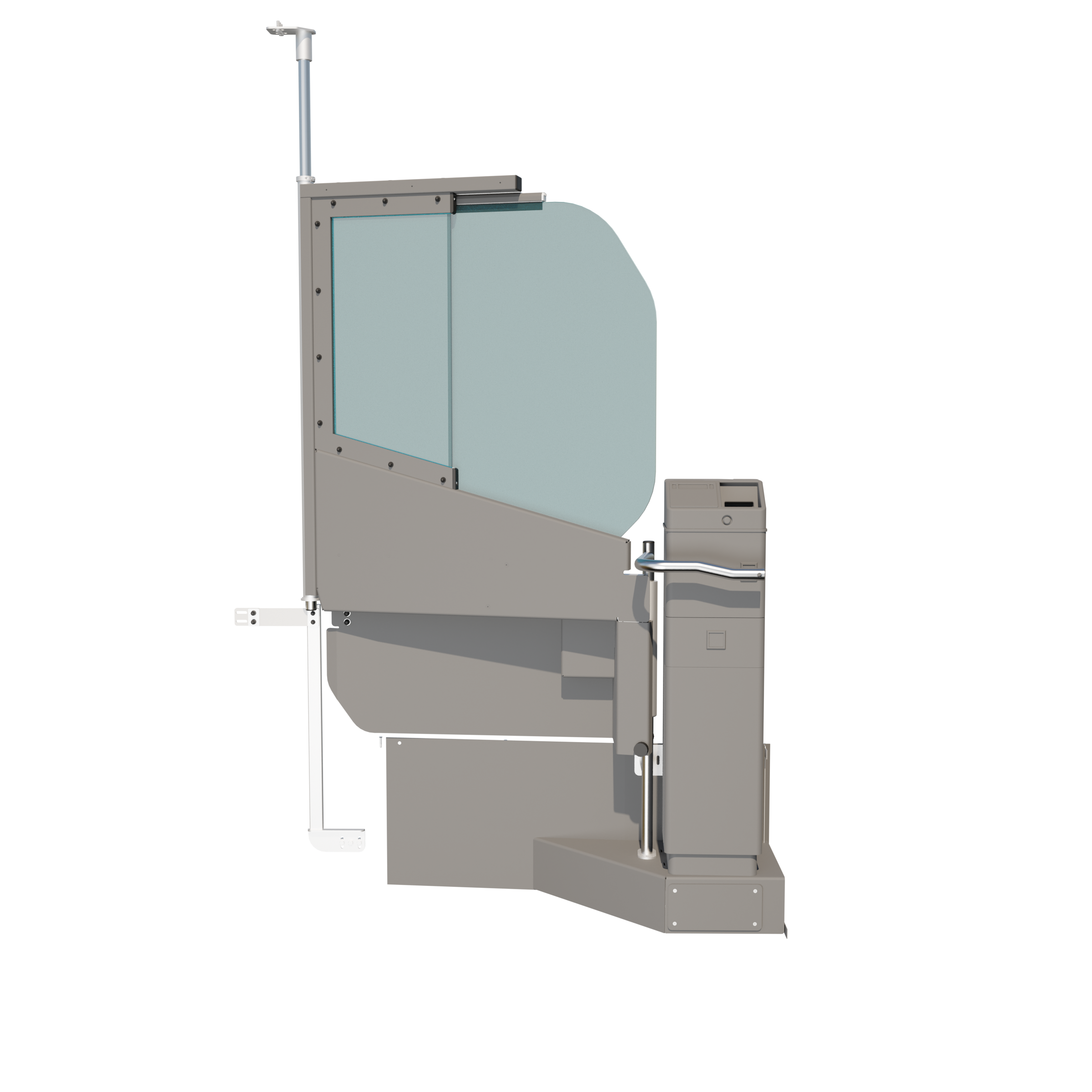

AROWGuard slide system driver protection barrier with D shape extended glass installed on a transit bus

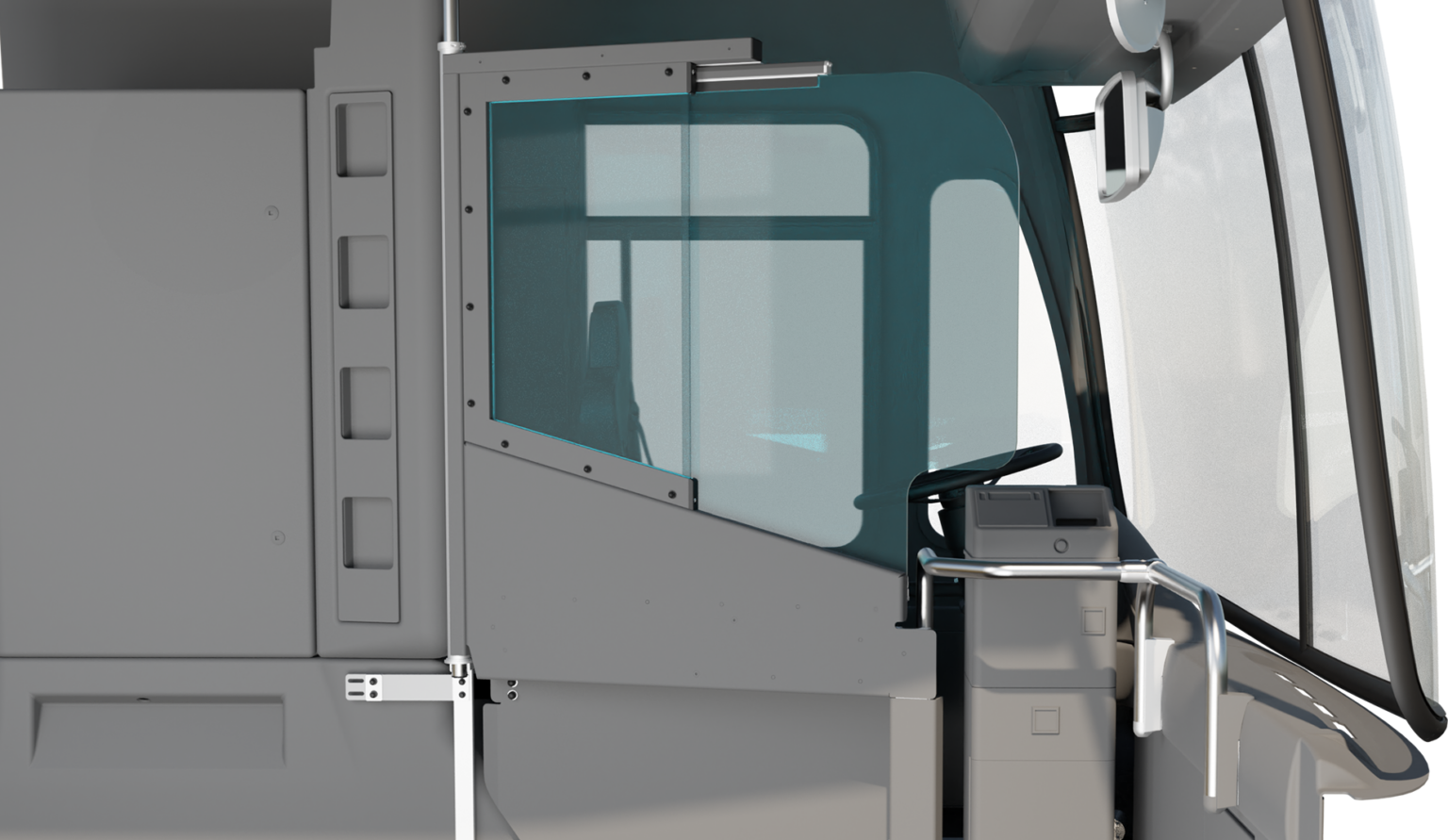

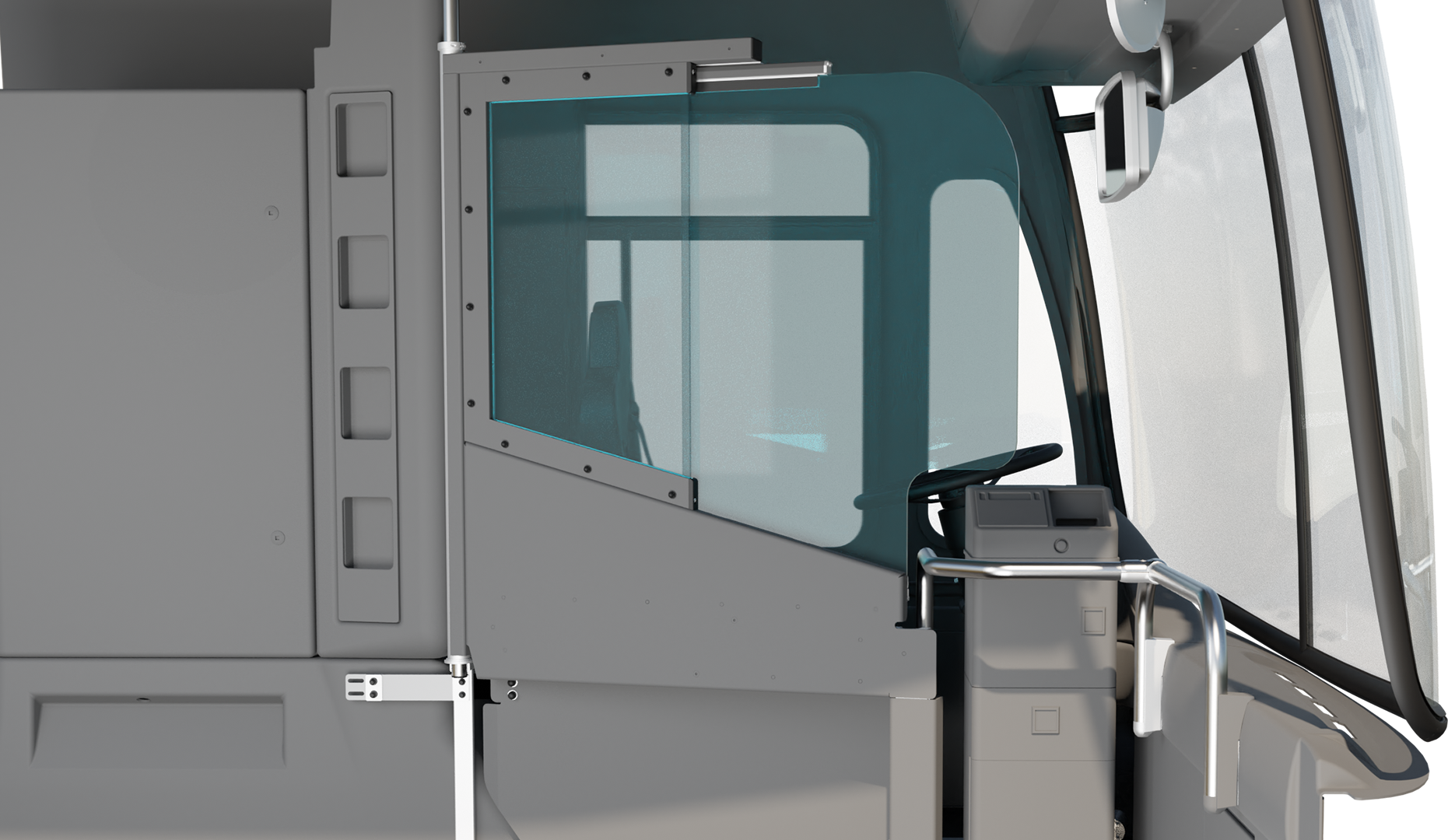

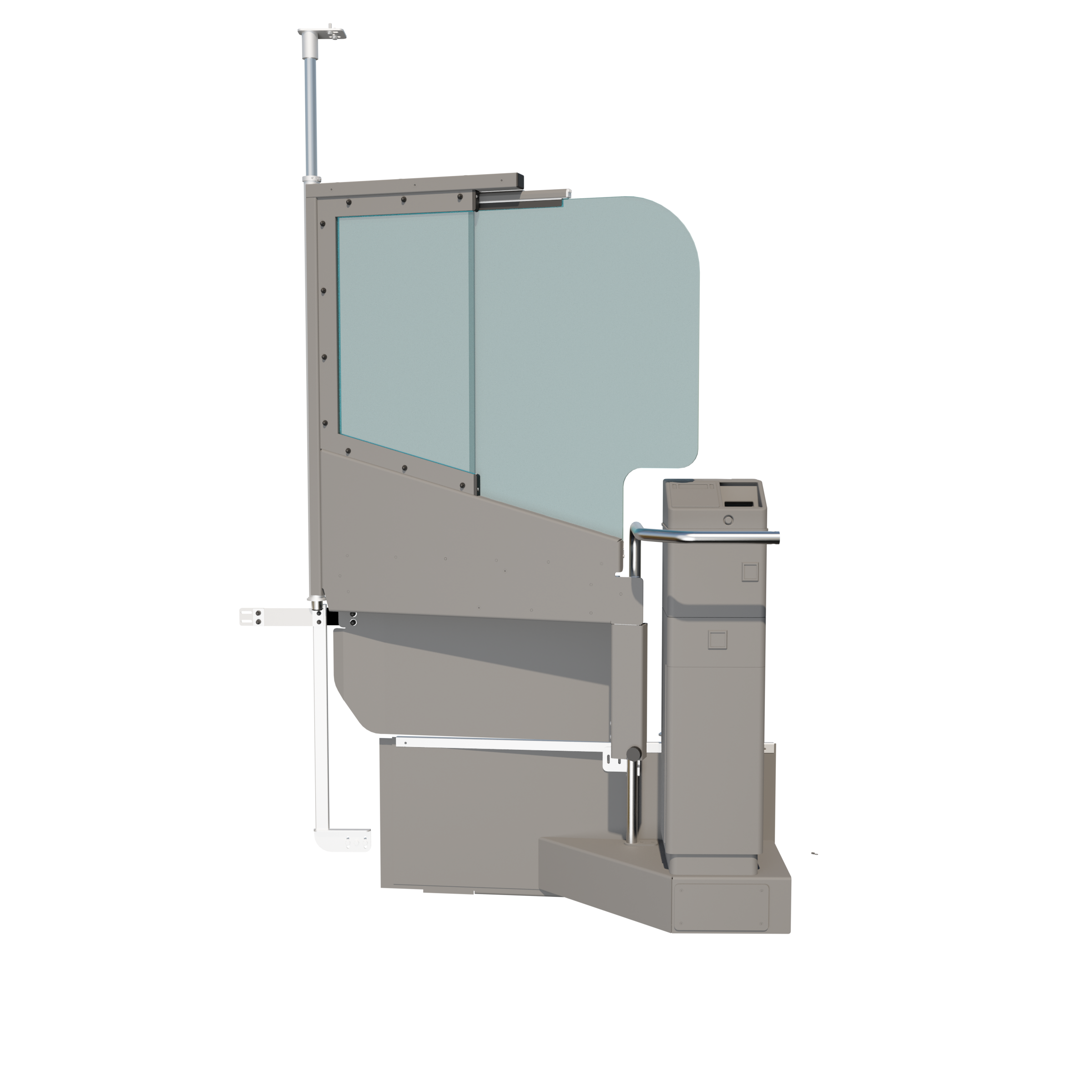

AROWGuard slide system driver protection barrier with p shape extended glass installed on a transit bus

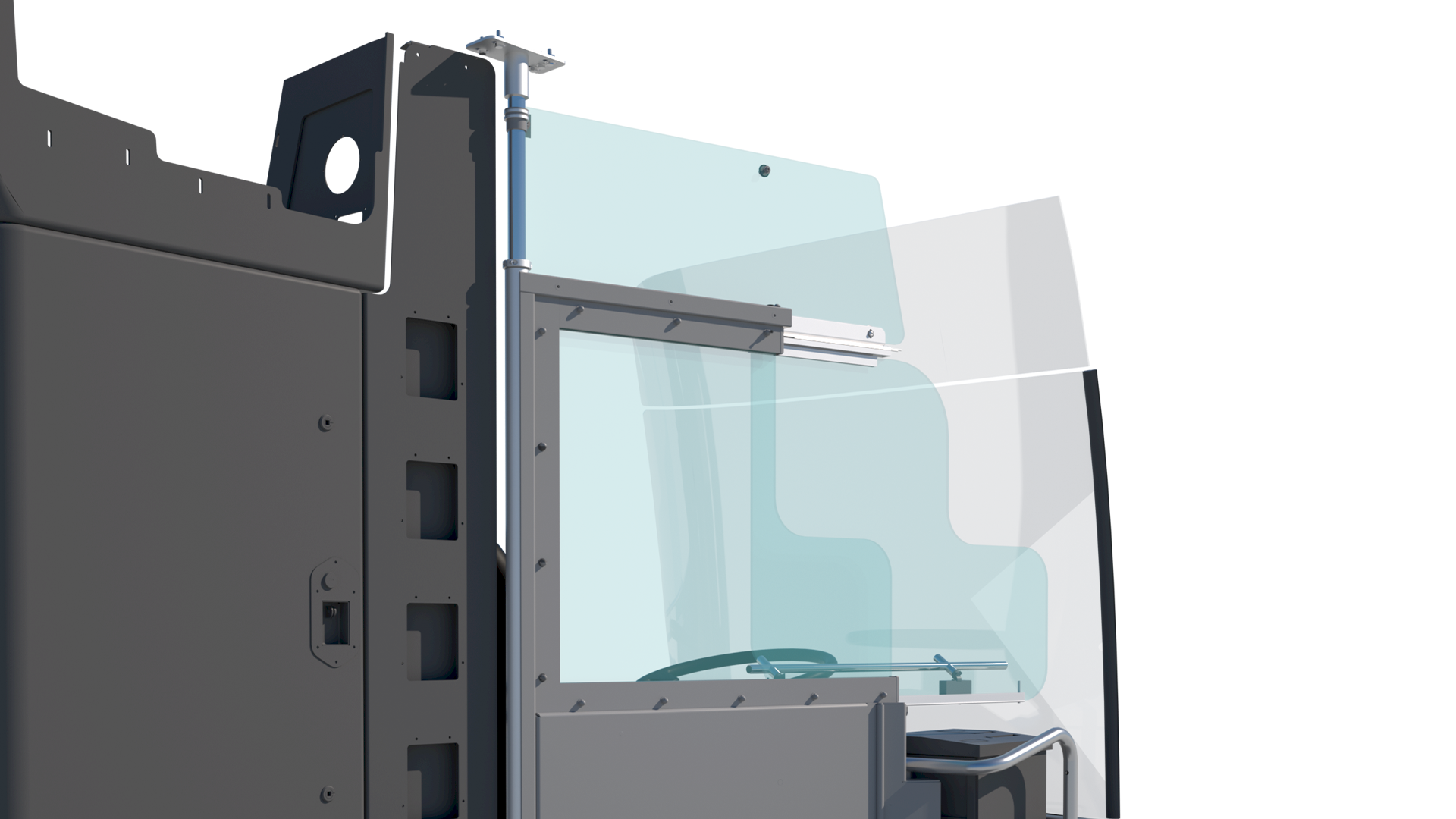

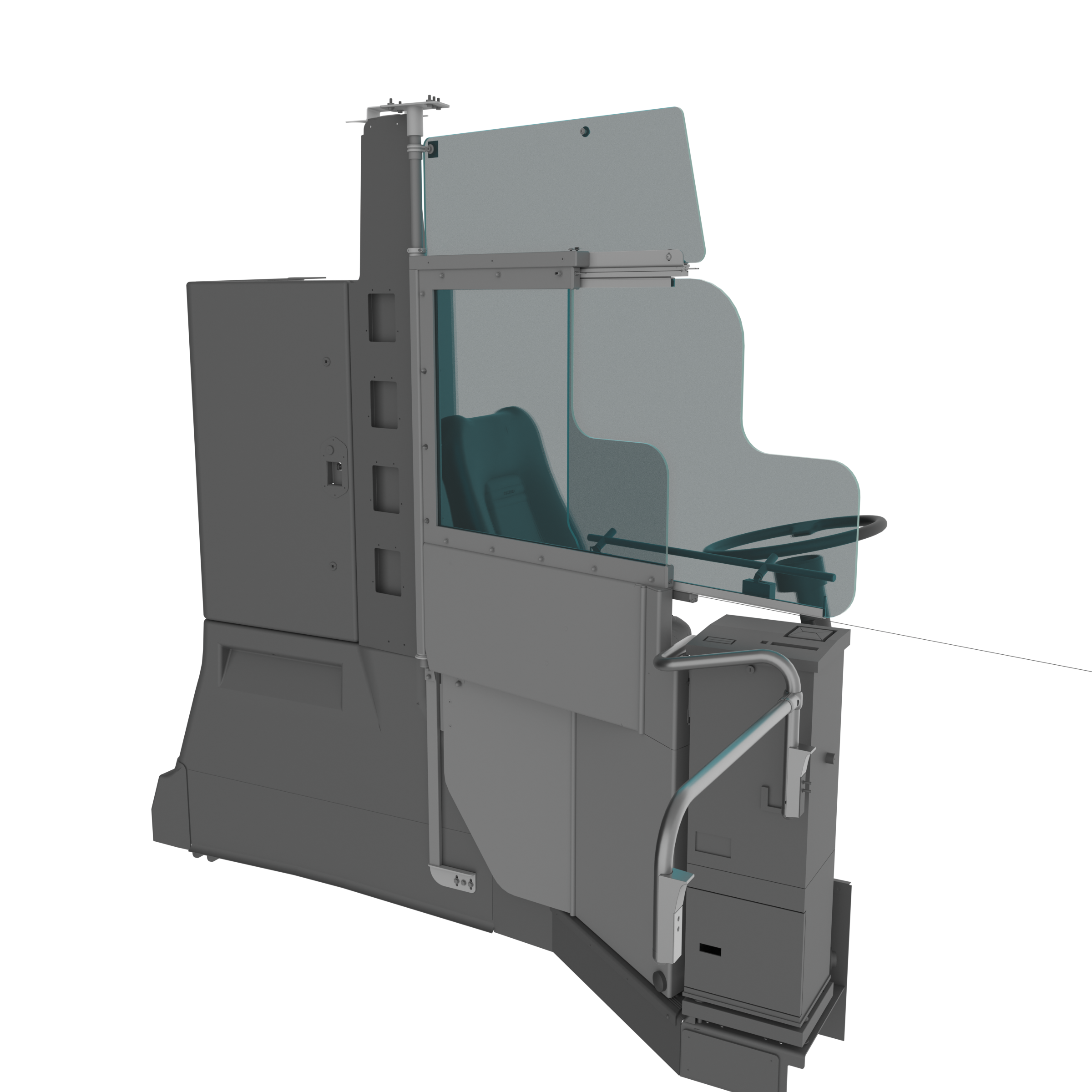

AROWGuard Max

Designed to provide the driver with maximum protection, the AROWGuard Max features an enhanced two-part sliding glass system that extends as far forward to the windshield as possible. This DPS design gives the driver total control by allowing them to slide the larger glass into various positions to achieve maximum protection. The new design also has a polycarbonate panel at the top of the door that provides even more protection and minimizes airborne pathogens from passing through to the driver by extending as close to the ceiling as possible.

  •  Extends as far forward and as close to the ceiling as possible.

  • Easy to slide closed, offering the driver quick protection in routine service or in the event of an emergency.

  • Utilizes the time-tested and robust AROW Global rocker latch with added ergonomic release bar.

  • Low-friction track controls slide forces and provides long-lasting, reliable operation.

  • Designed to attach securely to the vehicle chassis or carlines.

  • In compliance with AS-2 regulations and ADA requirements.

  • Primary glazing includes pyrolytic anti-glare coating, which reduces interior and exterior light reflectance to less than 2%.

  • Tailored to work around existing bus equipment such as fare boxes, cameras, and stanchions.

  • Glazing shall permit unobstructed view of the curb-side mirrors and to the bottom of the entrance door for operators included in the 95th percentile of the operator population in accordance with SAE J941.

  • Glazing material shall be a minimum of 5/16” (8mm) thickness and be of a tempered / laminated construction with pyrolytic application of anti-glare coating on surfaces #1 and #4.

  • Glazing material shall comply with American National Institute, Standard ANSI/SAE Z26.1-1996 S5.2, FMVSS 571.205 49CFR, and SAE J673 #1 edge standards for automotive glazing.

  • Glazing material shall be properly marked indicating approved for automotive use in accordance with ANSI/SAE Z26.1-1996 S7 and FMVSS 205 S6.2 standards.

  • All DPS glazing shall be easily serviceable and allow replacement in less than 5 minutes by a qualified technician.

  • Standard Glass
  • D Shape Extended Glass
  • P Shape Extended Glass

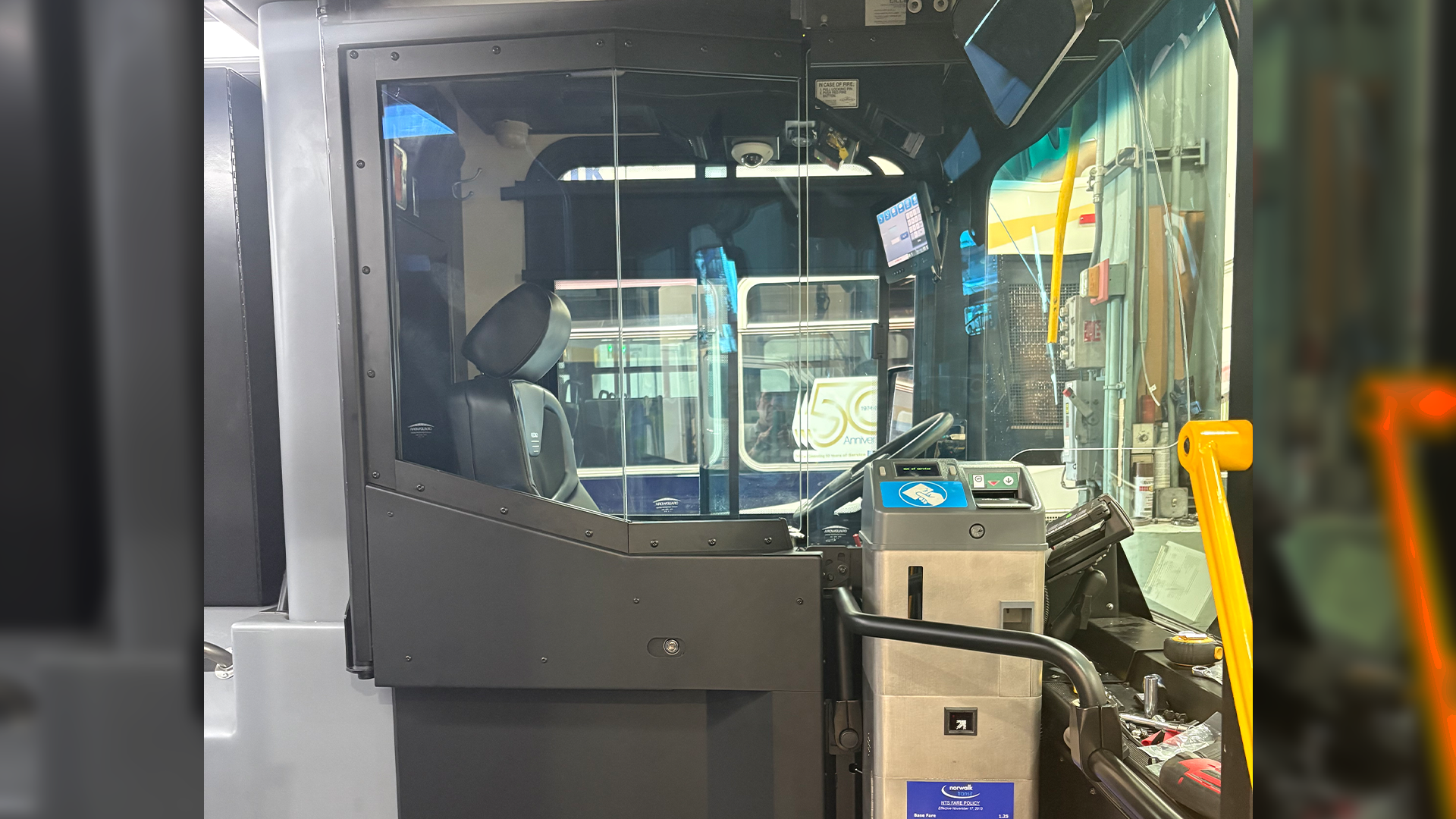

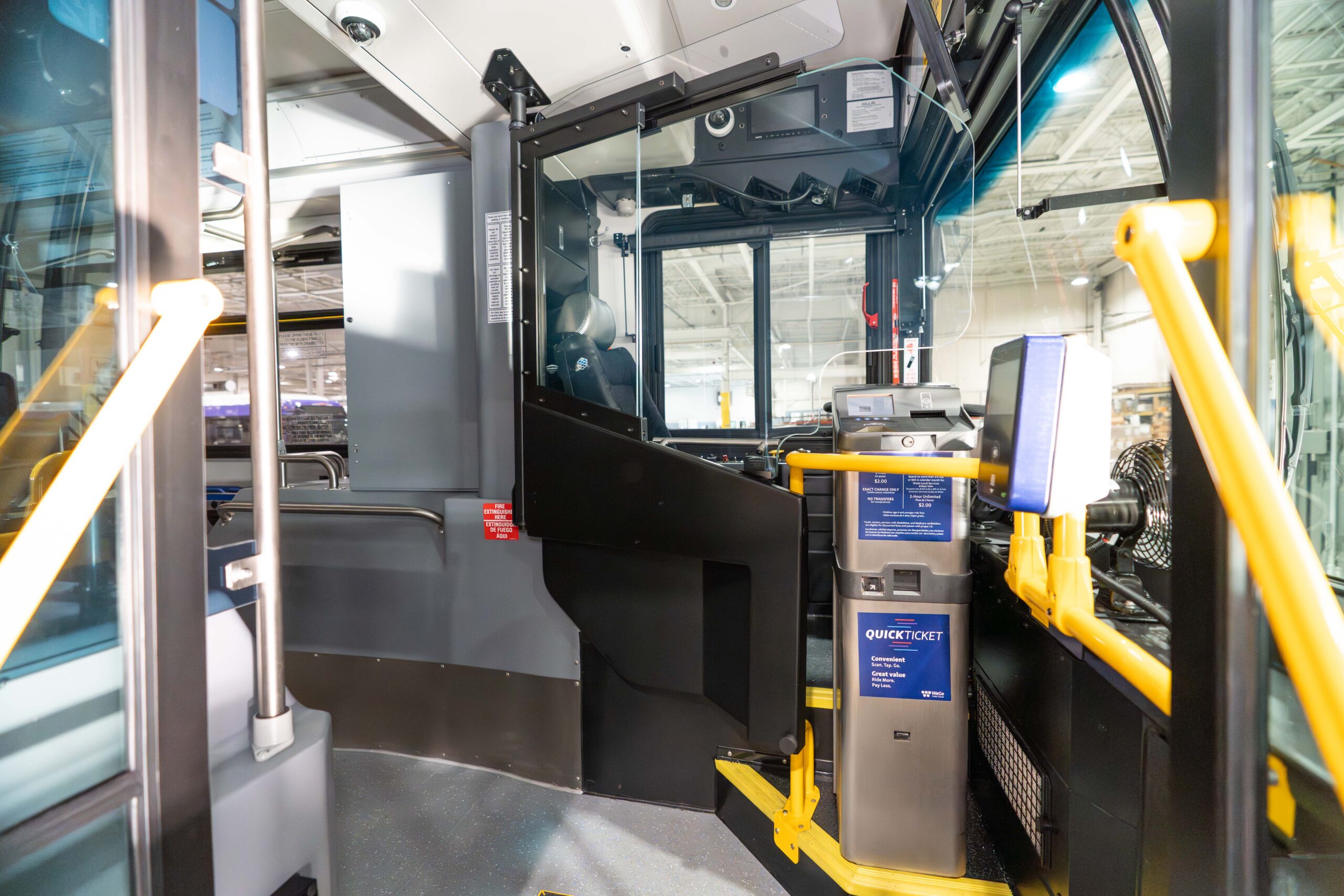

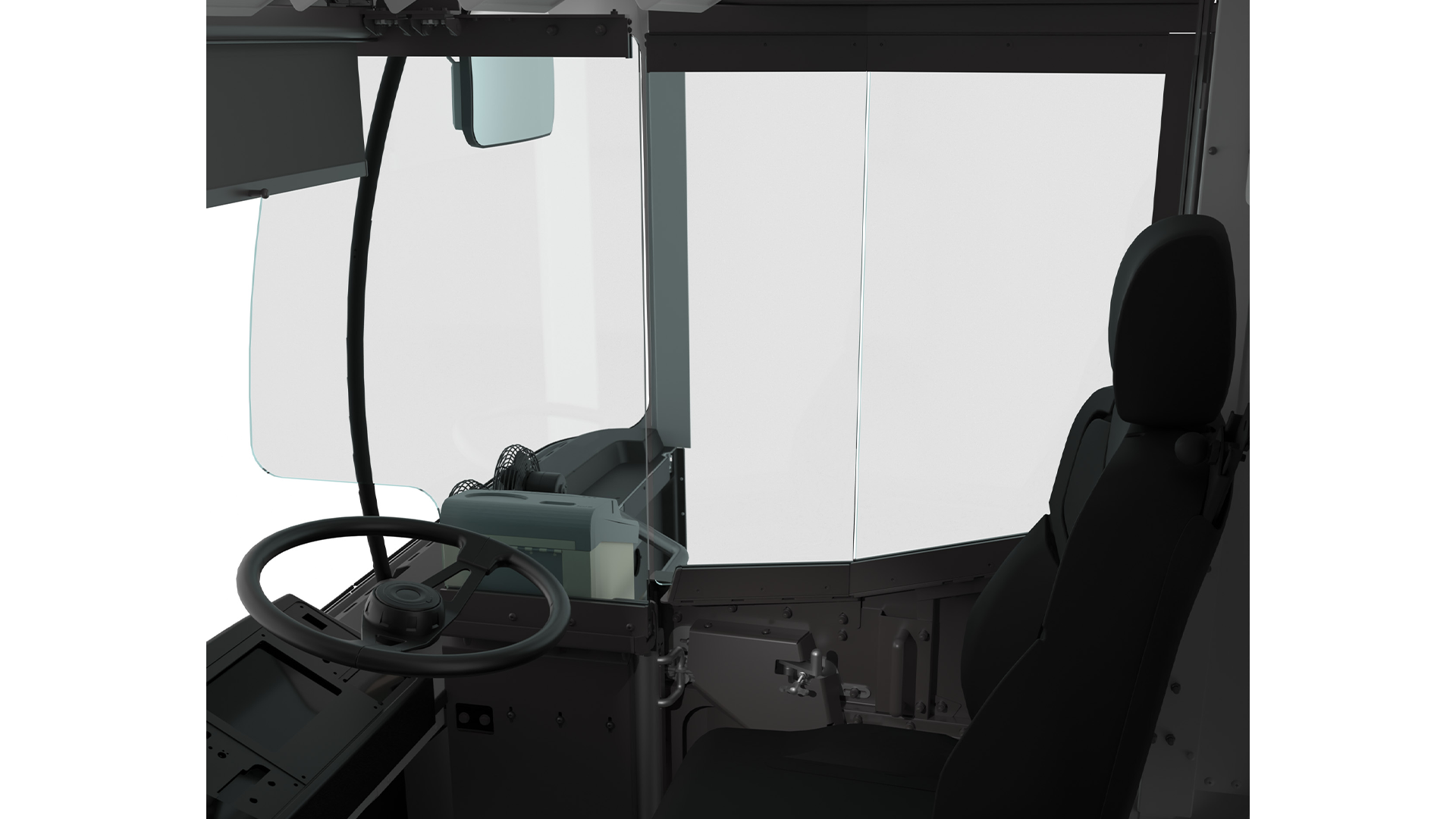

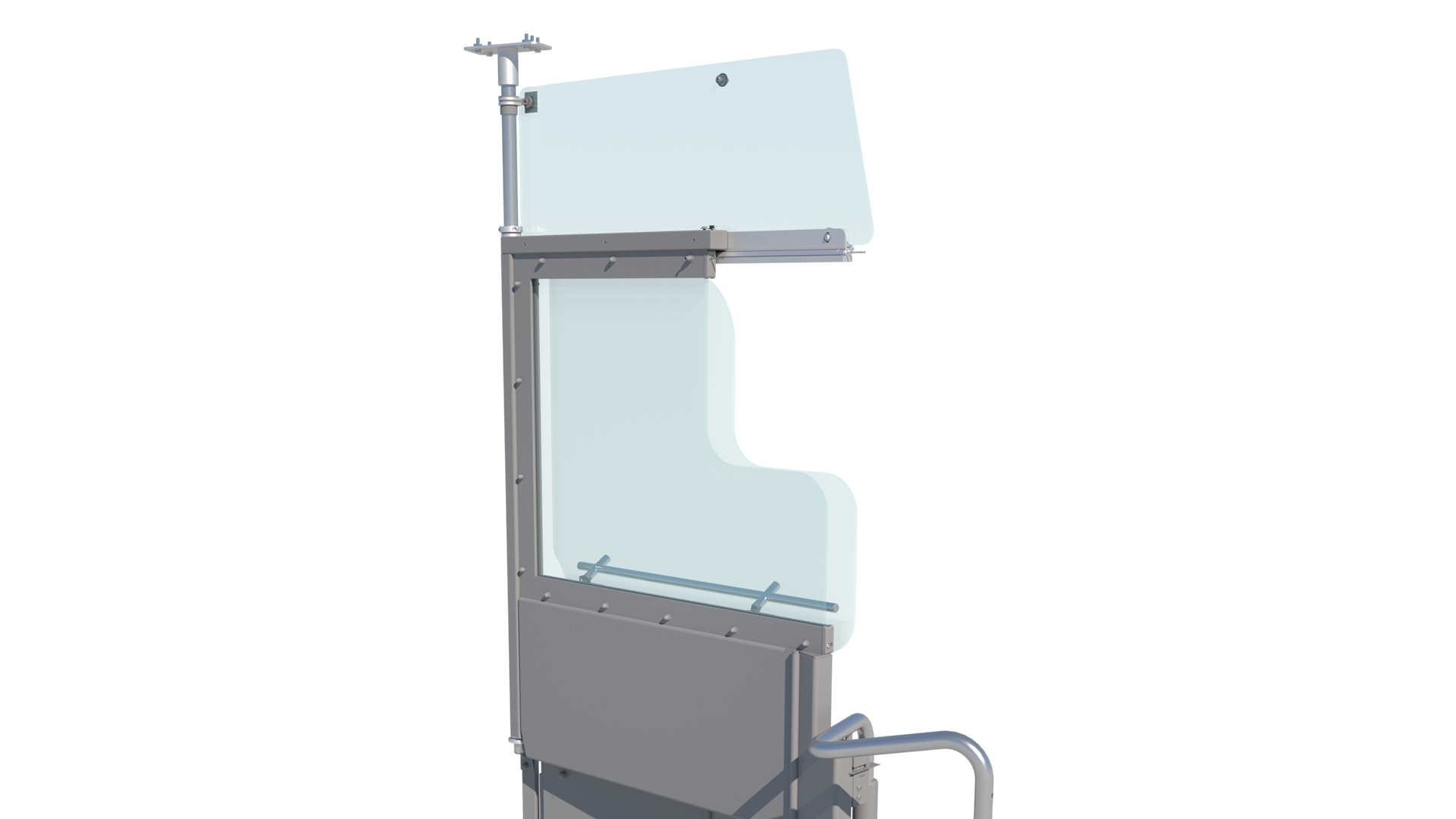

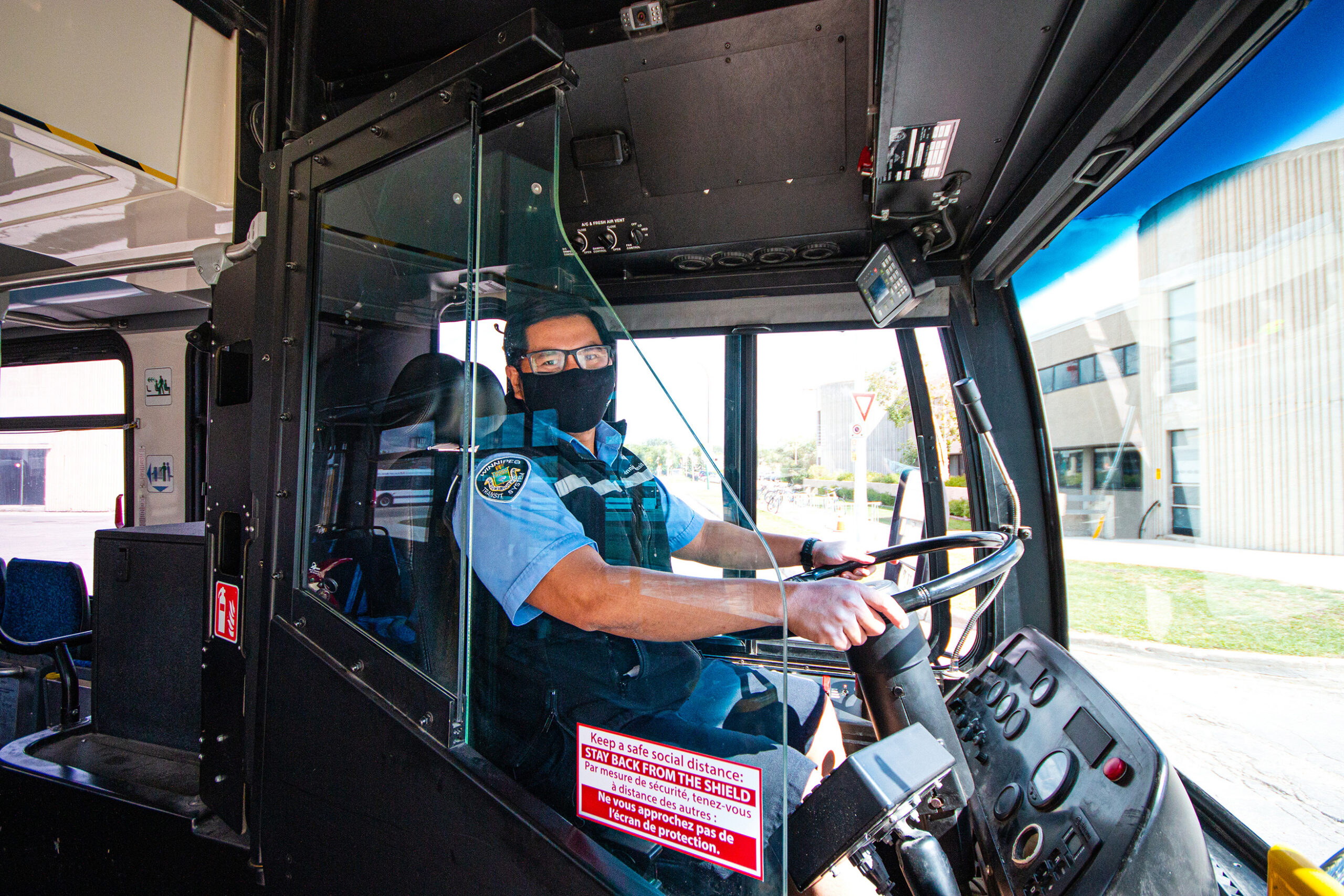

AROWGuard Max sliding driver protection barrier



Full Fixed

The AROWGuard Fixed System is designed to be in use 100% of the time. This is ideal for applications where mandatory full time use of the protection system is desired.

  •  Designed to attach securely to the vehicle chassis or carlines.

  • In compliance with AS-2 regulations and ADA requirements.

  • Pyrolytic anti-glare coating compatible, which reduces interior and exterior light reflectance to less than 2%.

  • Glass geometry allows for unobstructed view of surroundings, including rearward facing and curbside mirrors.

  • Tailored to work around existing bus equipment such as fare boxes, cameras, and stanchions.

  • Contoured door provides maximum elbow room while maintaining ADA compliance.

  • Glazing shall permit unobstructed view of the curb-side mirrors and to the bottom of the entrance door for operators included in the 95th percentile of the operator population in accordance with SAE J941.

  • Glazing material shall be a minimum of 5/16” (8mm) thickness and be of a tempered / laminated construction with pyrolytic application of anti-glare coating on surfaces #1 and #4.

  • Glazing material shall comply with American National Institute, Standard ANSI/SAE Z26.1-1996 S5.2, FMVSS 571.205 49CFR, and SAE J673 #1 edge standards for automotive glazing.

  • Glazing material shall be properly marked indicating approved for automotive use in accordance with ANSI/SAE Z26.1-1996 S7 and FMVSS 205 S6.2 standards.

  • All DPS glazing shall be easily serviceable and allow replacement in less than 5 minutes by a qualified technician.

  • Standard Glass
  • D Shape Extended Glass
  • P Shape Extended Glass

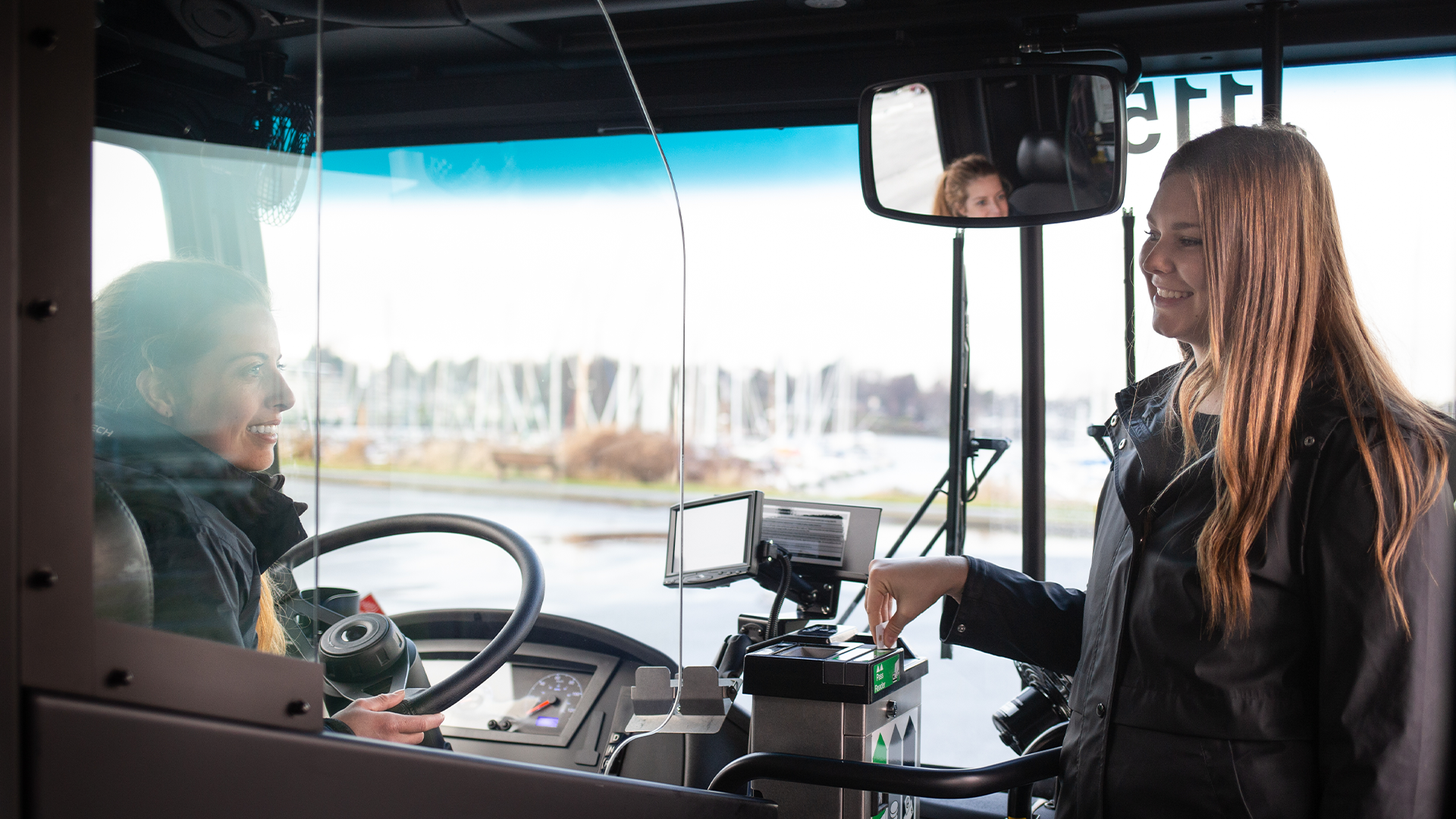

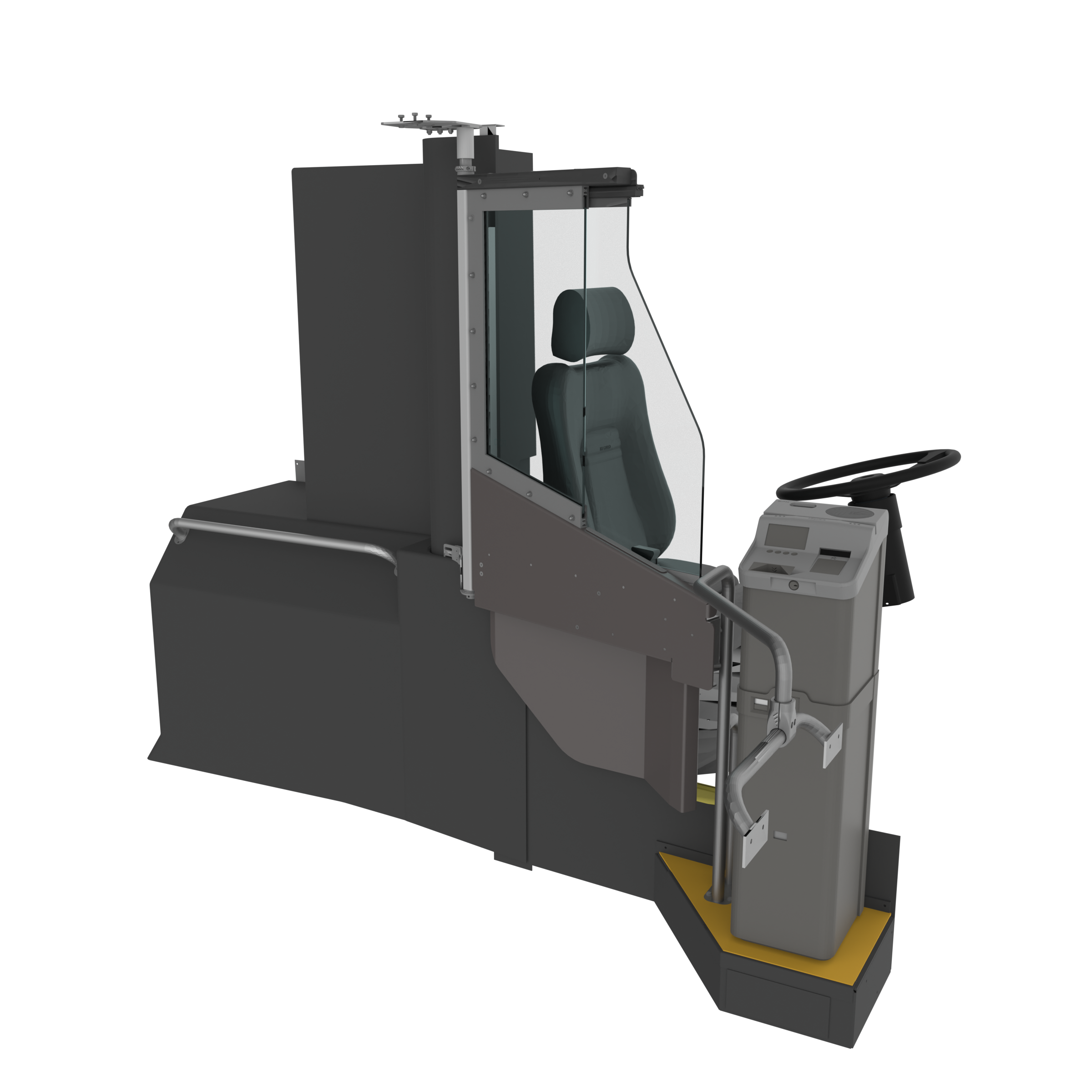

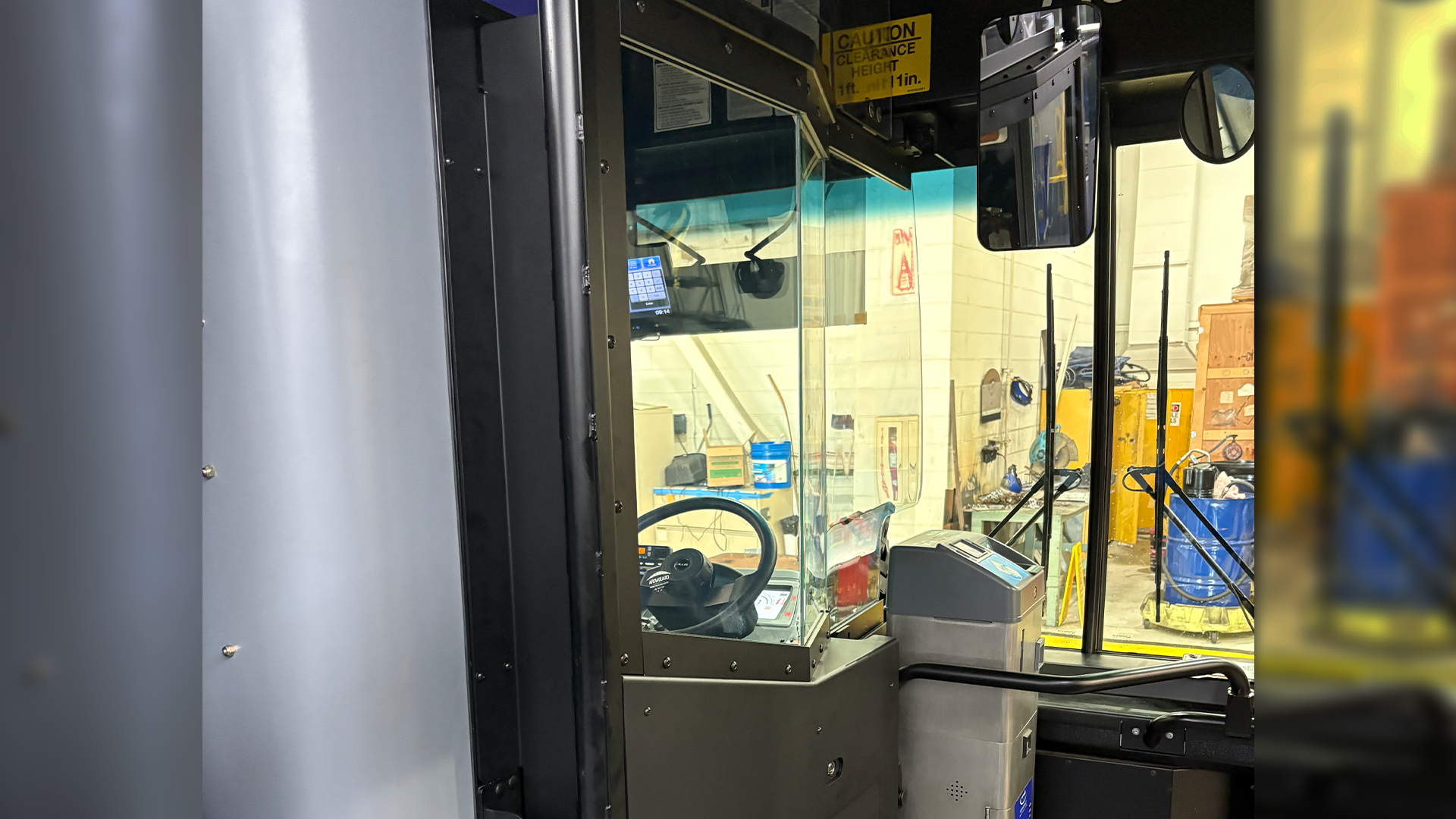

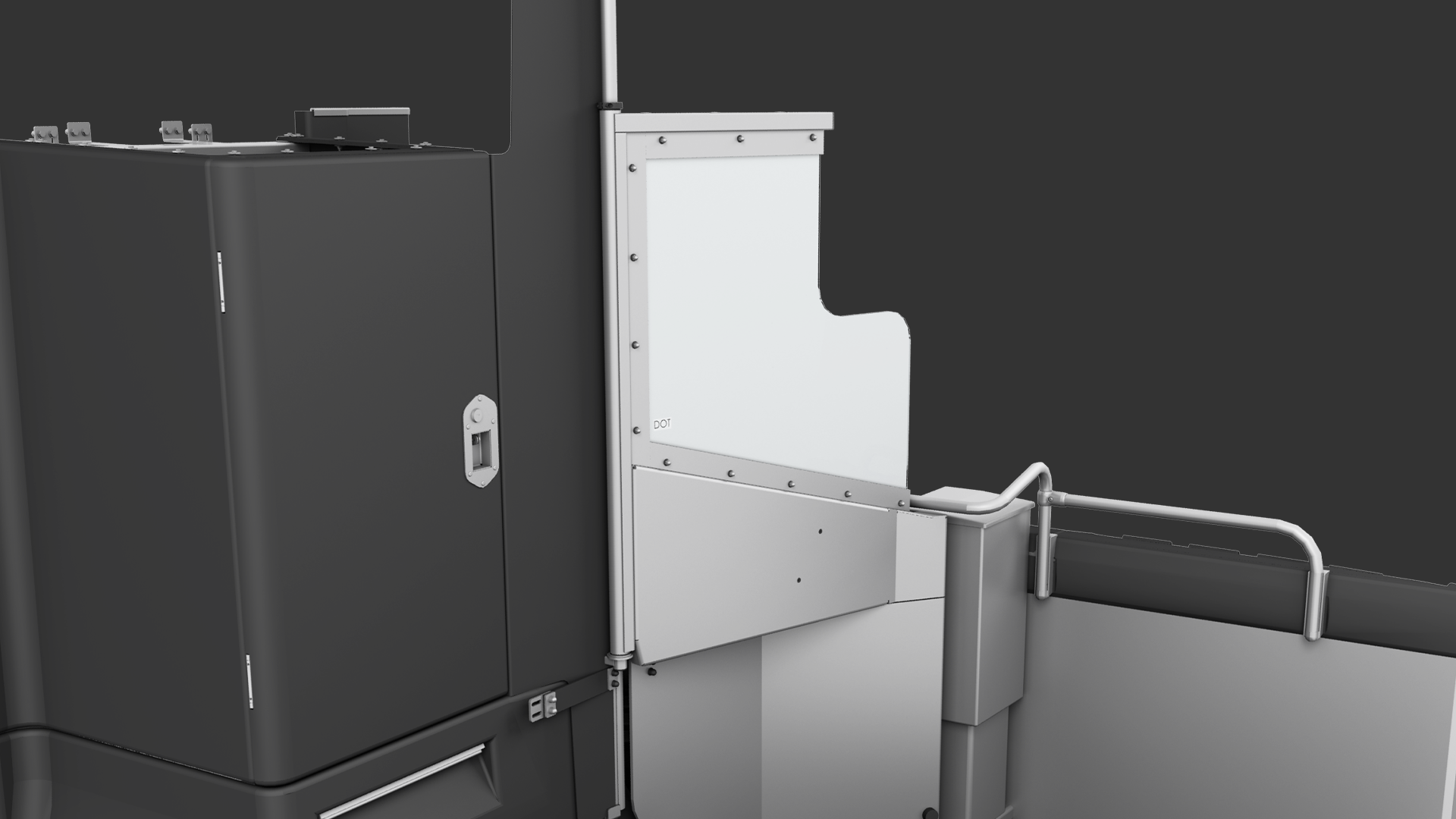

AROWGuard full fixed driver protection barrier

Full Fixed Installation
